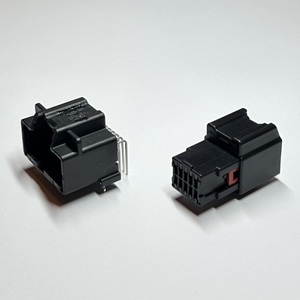

| Series | AIT connector |
| Category | Automotive Connectors |
| Sub category | Wire-to-Board, Wire-to-Wire |
| PC board mounting | Through-hole, Screw lock |
| Mating direction | Side entry, Top entry |
| Panel mounting | Free-hanging |
| Terminal size | 0.64 terminal |
| Array (Insertion part) | Single-row, Dual-row |
| Lock | Secure lock (Inner) |
| Retainer | TPA |
| Mating assist | CPA, Keying |
| Standard | USCAR |
| Pitch | 2.54 mm |
| Circuit | 8, 10, 16, 18, 20 |
| Current rating | 7 A DC |
| Voltage rating | 14 V DC |
| Temperature range | -40 ℃ to +125 ℃ |
| Insulation resistance | 100 MΩ min. |
| Conductor size | 0.3 mm2 to 0.8 mm2 |
| Insulation O.D. | to φ 1.9 mm |
| Remarks | Applicable wire: AVSS, CAVS, SAE |
| Product | IGES | STEP | 3D-PDF | 2D-PDF | |
| 1 | SAIT-A03GF-M064 | - | - | - | Download |
| 2 | SAIT-A03T-M064 | - | - | - | Download |
| 3 | SAIT-A02GF-M064 | - | - | - | Download |
| 4 | SAIT-A02T-M064 | - | - | - | Download |
| 5 | SAITW-A03T-064 | - | - | - | Download |
| 6 | SAITW-B03GF-064 | - | - | - | Download |
| 7 | SAITW-A02T-064 | - | - | - | Download |
| 8 | AITPB-C08-1A-K | Download | Download | Download | Download |
| 9 | B20B2-AIT-A2A-KS | Download | |||
| 10 | B20B2-AIT-A2C-NS | Download | |||
| 11 | B08B-AIT-A2A-KS | Download | |||
| 12 | B16B-AIT-A2A-KS | Download | |||
| 13 | B08B-AIT-A2B-HS | Download | |||
| 14 | B16B-AIT-A2B-HS | Download | |||
| 15 | B18B-AIT-A2F-SS | Download | |||
| 16 | S20B-AIT-A2A-KS | Download | Download | Download | Download |
| 17 | S20B-AIT-A2B-HS | Download | |||
| 18 | S20B1-AIT-A2A-KS | Download | |||
| 19 | S20B1-AIT-A2B-HS | Download | |||
| 20 | AITWSB-10-2AK | Download | Download | Download | Download |
Catalog
