FXY connector
pdf Catalog 2D3d 3D Data
ProductIGESSTEP3D-PDF
115FXY-RSM1-GAN-1-TBDownloadDownloadDownload
225FXY-RSM1-GAN-1-TBDownloadDownloadDownload
331FXY-RSM1-GAN-1-TBDownloadDownloadDownload
445FXY-RSM1-GAN-1-TBDownloadDownloadDownload
551FXY-RSM1-GAN-1-TBDownloadDownloadDownload
681FXY-RSM2-HF-GAN-A-TBDownloadDownloadDownload
Shopping Site
Product Profile
SeriesFXY connector
CategoryFFC/FPC Connectors
TypeZero insertion force type, SMT type
Low-profile type, With slide lock mechanism
FeatureLow-profile
Depth space saving
For FPC with protrusion
Specification
Pitch0.3mm
Current rating0.2A
Voltage rating50V
PC board mounting directionSide entry
Product description
In addition to achieving space saving and low-profile features demanded by the market, this connector also realizes superb operability by adopting a FPC with protrusion. The use of the FPC provides secure and foolproof mating at the customers' production site.

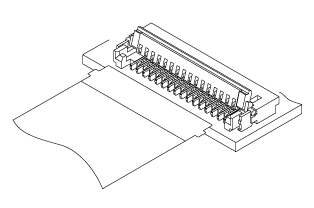

FXY connector
