JDV connector

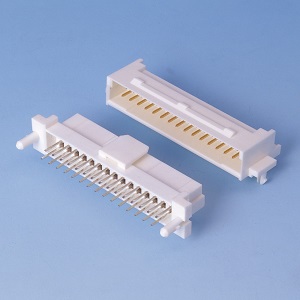

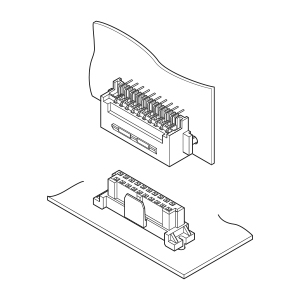

The JDV connector is designed for board-to-board connections with a secure locking device that provides stability and excellent performance against shock and vibration.
Product Profile
SeriesJDV connector
CategoryBoard-to-Board Connectors
Connecting
style		Vertical
PC board
mounting		Through-hole
LockSecure lock, Friction lock
StandardCSA, UL
Specification
Pitch3mm
Circuit20, 30, 40
Current
rating		1 A AC/DC
Voltage
rating		50 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		800MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 300 VAC for one minute.
Catalog Catalog
Shopping Site JDV connector JDV connector

3D/2D Data
Product2D-PDF
1JDV-PS20LB-10ADownload
2JDV-PS30LB-10-1Download
3JDV-PS40FLB-10ADownload
4JDV-PS40LB-10-1Download
5JDV-R20LB-10ADownload
6JDV-R30LB-10-1Download
7JDV-R40LB-10-1Download
