JET connector

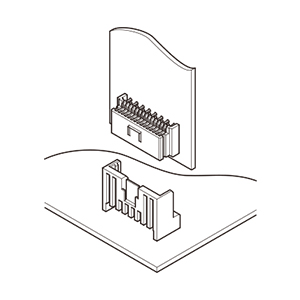

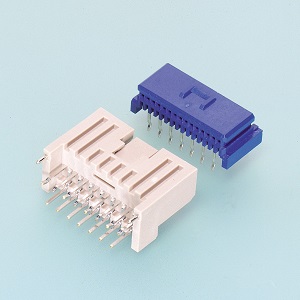

Self-supporting style board to board connectors. Both plugs and receptacles are supplied radial-tape mounted (conforming to JIS C 0805 tape specification), which can be mounted by versatile, radial component pick and place machines. Automatic mounting is possible up to 15 circuits.
Product Profile
SeriesJET connector
CategoryBoard-to-Board Connectors
Connecting
style		Vertical
PC board
mounting		Through-hole
LockSecure lock, Friction lock
OthersSelf-supporting
Specification
Pitch1.25 mm
Circuit9, 15
Current
rating		1 A AC/DC
Voltage
rating		50 V AC/DC
Temperature
range		-25 ℃ to +85 ℃
Insulation
resistance		500 MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 500 VAC for one minute.
Catalog Catalog
JET connector JET connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
109P-JETDownload
215P-JETDownload
309R-JET-FDownload
415R-JET-FDownload
509R-JET-P
+
+
+
Download
615R-JET-P
+
+
+
Download
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
