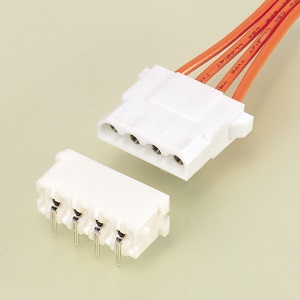

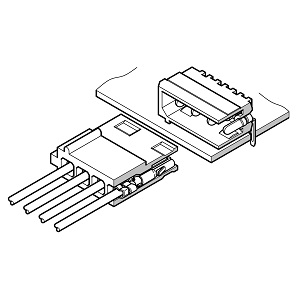

LC connector
This reliable, low cost connector is suited for bringing power to printed circuit boards in office automation equipment. A major application has been in secondary power supply circuits of floppy disk drives.
Product Profile
SeriesLC connector
CategoryCrimp Style Connectors (Wire-to-Board type)
PC board
mounting		Through-hole
Mating
direction		Side entry, Top entry
Array
(Insertion part)		Single-row
StandardCSA, UL
Others2 wire crimping
Specification
Pitch5.08 mm
Circuit4
Current
rating		7 A AC/DC (AWG #18)
Voltage
rating		250 V AC/DC
Temperature
range		-25 ℃ to +90 ℃
Insulation
resistance		1,000 MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,500 VAC for one minute.
Conductor
size		AWG # 22 , # 20 , # 18
0.33 mm2 to 0.75 mm2
Insulation O.D.φ 1.7 mm to φ 2.1 mm
Catalog Catalog Manual Manual
LC connector LC connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SLC-21T-2.0
-
-
-
Download
2SLC-22T-2.0
-
-
-
Download
3LCP-04DownloadDownloadDownloadDownload
4LC-04TDownloadDownloadDownloadDownload
5LC-04ADownloadDownloadDownloadDownload
6LC-04BDownloadDownloadDownloadDownload
7LCC-04DownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
