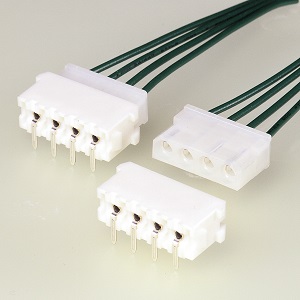

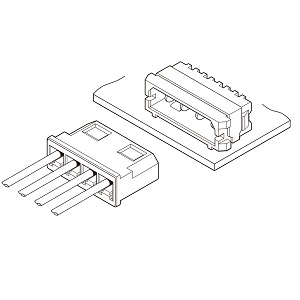

LC-L connector
The LC connector is for the secondary power circuit used in the office automation equipment, such as the 3.5inch HDD and MO, including the DVD. This low-profile crimp type connector is designed to meet further miniaturization of the equipment. The Plug Housing can also be mated with our LC connector (top and side entry types) and the power connection part of the LK connector.
Product Profile
SeriesLC-L connector
CategoryCrimp Style Connectors (Wire-to-Board type)
PC board
mounting		Through-hole
Mating
direction		Side entry, Top entry
Array
(Insertion part)		Single-row
Others2 wire crimping
Specification
Pitch5.08mm
Circuit4
Current
rating		5 A AC/DC (AWG #20)
Voltage
rating		250 V AC/DC
Temperature
range		-25℃ to +90℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,500 VAC for one minute.
Conductor
size		AWG #26,#24,#22,#20,#18
0.13mm2 to 0.75mm2
Insulation O.D.φ1.3mm to φ2.1mm
Catalog Catalog
Shopping Site LC-L connector LC-L connector

3D Data
ProductIGESSTEP3D-PDF
1LC-04ADownloadDownloadDownload
2LC-04BDownloadDownloadDownload
3LC-04TDownloadDownloadDownload
