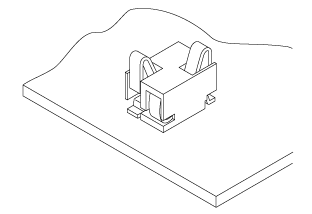

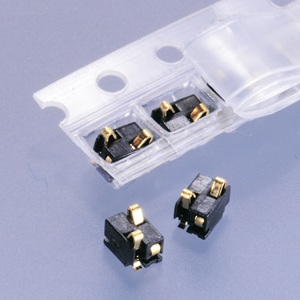

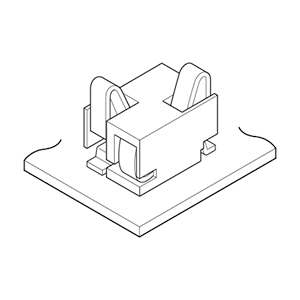

This 2-circuit connector enables electrical connection by simply pressing the electrode of an electronic component, such as a compact microphone, against the MIH connector contact area of protrusion. It facilitates the assembly of small electrical and electronic devices.
Product Profile
| Series | MIH connector |
| Category | Other Connectors (Including headers) |
Connecting
style | Parallel |
PC board
mounting | SMT |
| Others | Compression |
Specification
| Pitch | 1 mm |
Current
rating | 0.5 A DC |
Voltage
rating | 20 V DC |
Temperature
range | -25 ℃ to +85 ℃ |
Insulation
resistance | 1,000 MΩ min. |
Withstanding
voltage | There shall be no breakdown or flashover while applying 100 VAC for one minute. |
[Notes]
"-" in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells:
Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
