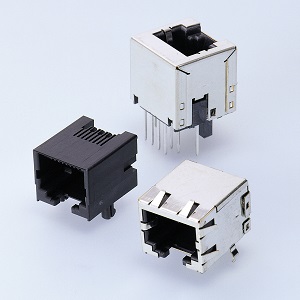

MJ connector 8-circuits type
FFC standard conforming (RJ45) modular connector, to be used for the LAN connection of the printer or modem.

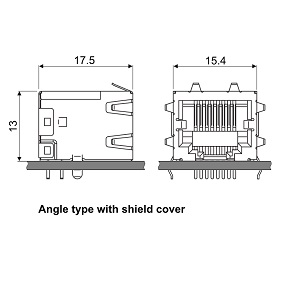

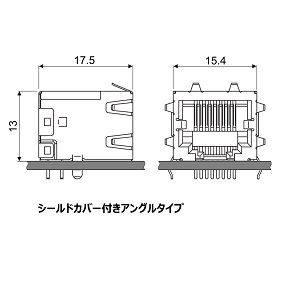

*Fully-shielding-covered type is available for high-leveled shielding effect.
*Shielding covered type has secure grounding circuit, as the hook part is soldered to the PC board via shielding cover (spring part).
Product Profile
SeriesMJ connector 8-circuits type
CategoryInterface Connection Connectors
PC board
mounting		Through-hole
Mating
direction		Side entry, Top entry
Contact
surface side		Upper contact
Transmission
Electromagnetic		Shield, High speed, ESD
StandardCSA, RJ45, UL
Specification
Circuit8
Current
rating		1.3 A AC/DC
Voltage
rating		250 V AC/DC
Temperature
range		-40℃ to +80℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,000 VAC for one minute.
Catalog Catalog
Shopping Site MJ connector 8-circuits type MJ connector 8-circuits type

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1MJ-88H-RD315KDownloadDownloadDownloadDownload
2MJ-88R-RD315KDownloadDownloadDownloadDownload
3MJ-88U-SD315K-TDownloadDownloadDownload
4MJ-JP68KDownloadDownloadDownloadDownload
