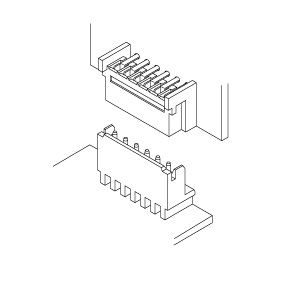

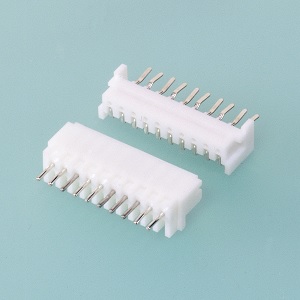

Measuring 2.0 mm in pitch, 9.2 mm in mounting height and 5.5 mm in thickness, this board-to-board connector makes high-density mounting of components in electronic products possible. It is ideal for small electronic products, such as portable VCAs and video cameras, which require high-density mounting and high reliability.
Product Profile
| Series | MQ connector |
| Category | Board-to-Board Connectors |
Connecting
style | Vertical, Parallel |
PC board
mounting | Through-hole |
| Standard | UL |
Specification
| Pitch | 2mm |
| Circuit | 4, 5, 6, 7, 8, 9, 10, 12 |
Current
rating | 1 A AC/DC |
Voltage
rating | 250 V AC/DC |
Temperature
range | -25℃ to +85℃ |
Insulation
resistance | 1,000MΩ min. |
Withstanding
voltage | There shall be no breakdown or flashover while applying 800 VAC for one minute. |
[Notes]
"-" in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells:
Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
