HOME > Product Profile

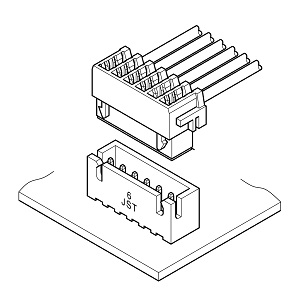

NR connector
pdf Catalog pdf Manual 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
102NR-E4KDownloadDownloadDownload
202NR-E6SDownloadDownloadDownload
303NR-E4KDownloadDownloadDownload
403NR-E6SDownloadDownloadDownload
504NR-E4KDownloadDownloadDownload
604NR-E6SDownloadDownloadDownload
705NR-E6SDownloadDownloadDownload
806NR-E6SDownloadDownloadDownload
907NR-E6SDownloadDownloadDownload
1008NR-E6SDownloadDownloadDownload
1109NR-E6SDownloadDownloadDownload
1210NR-E6SDownloadDownloadDownload
1312NR-E6SDownloadDownloadDownload
1413NR-E6SDownloadDownloadDownload
1514NR-E6SDownloadDownloadDownload
16B10B-XH-ADownloadDownloadDownloadDownload
17B10B-XH-AMDownload
18B12B-XH-ADownloadDownloadDownloadDownload
19B12B-XH-AMDownload
20B13B-XH-ADownloadDownloadDownloadDownload
21B14B-XH-ADownloadDownloadDownloadDownload
22B2B-XH-ADownloadDownloadDownloadDownload
23B2B-XH-AMDownloadDownloadDownloadDownload
24B3B-XH-ADownloadDownloadDownloadDownload
25B3B-XH-AMDownloadDownloadDownloadDownload
26B4B-XH-ADownloadDownloadDownloadDownload
27B4B-XH-AMDownloadDownloadDownloadDownload
28B5B-XH-ADownloadDownloadDownloadDownload
29B5B-XH-AMDownloadDownloadDownloadDownload
30B6B-XH-ADownloadDownloadDownloadDownload
31B6B-XH-AMDownloadDownloadDownloadDownload
32B7B-XH-ADownloadDownloadDownloadDownload
33B7B-XH-AMDownload
34B8B-XH-ADownloadDownloadDownloadDownload
35B8B-XH-AMDownload
36B9B-XH-ADownloadDownloadDownloadDownload
37B9B-XH-AMDownload
38S10B-XH-ADownloadDownloadDownloadDownload
39S10B-XH-A-1DownloadDownloadDownloadDownload
40S12B-XH-ADownloadDownloadDownloadDownload
41S12B-XH-A-1DownloadDownloadDownloadDownload
42S13B-XH-ADownloadDownloadDownloadDownload
43S13B-XH-A-1Download
44S14B-XH-ADownloadDownloadDownloadDownload
45S14B-XH-A-1DownloadDownloadDownloadDownload
46S2B-XH-ADownloadDownloadDownloadDownload
47S2B-XH-A-1DownloadDownloadDownloadDownload
48S3B-XH-ADownloadDownloadDownloadDownload
49S3B-XH-A-1DownloadDownloadDownloadDownload
50S4B-XH-ADownloadDownloadDownloadDownload
51S4B-XH-A-1DownloadDownloadDownloadDownload
52S5B-XH-ADownloadDownloadDownloadDownload
53S5B-XH-A-1DownloadDownloadDownloadDownload
54S6B-XH-ADownloadDownloadDownloadDownload
55S6B-XH-A-1DownloadDownloadDownloadDownload
56S7B-XH-ADownloadDownloadDownloadDownload
57S7B-XH-A-1DownloadDownloadDownloadDownload
58S8B-XH-ADownloadDownloadDownloadDownload
59S8B-XH-A-1DownloadDownloadDownloadDownload
60S9B-XH-ADownloadDownloadDownloadDownload
61S9B-XH-A-1DownloadDownloadDownloadDownload
Shopping Site
Product Profile
SeriesNR connector
CategoryInsulation Displacement Connectors (Wire-to-Board type)
TypeIDC style, Top entry, Wire side-feed type
Disconnectable type
Specification
Pitch2.5mm
Current rating2A (AWG#24)
Voltage rating250V
PC board mounting directionTop entry, Side entry
Product description
*Twin U-slot ID section
*The same shrouded header can be used for the XH crimp style connector, the NRD and the BR insulation displacement connectors, and the JQ board-to-board connector.

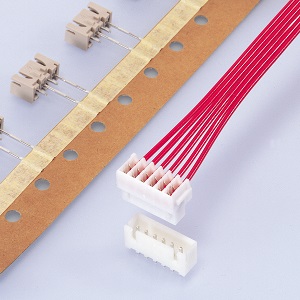

NR connector
