NRD connector
pdf Catalog pdf Manual 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
102NR-D6S-PDownloadDownloadDownload
203NR-D6S-PDownloadDownloadDownload
304NR-D6S-PDownloadDownloadDownload
405NR-D6S-PDownloadDownloadDownload
506NR-D6S-PDownloadDownloadDownload
607NR-D6S-PDownloadDownloadDownload
708NR-D6S-PDownloadDownloadDownload
809NR-D6S-PDownloadDownloadDownload
910NR-D6S-PDownloadDownloadDownload
1012NR-D6S-PDownloadDownloadDownload
1114NR-D6S-PDownloadDownloadDownload
1216NR-D6S-PDownloadDownloadDownload
13B10B-XH-ADownloadDownloadDownloadDownload
14B10B-XH-AMDownload
15B12B-XH-ADownloadDownloadDownloadDownload
16B12B-XH-AMDownload
17B14B-XH-ADownloadDownloadDownloadDownload
18B16B-XH-ADownloadDownloadDownloadDownload
19B2B-XH-ADownloadDownloadDownloadDownload
20B2B-XH-AMDownloadDownloadDownloadDownload
21B3B-XH-ADownloadDownloadDownloadDownload
22B3B-XH-AMDownloadDownloadDownloadDownload
23B4B-XH-ADownloadDownloadDownloadDownload
24B4B-XH-AMDownloadDownloadDownloadDownload
25B5B-XH-ADownloadDownloadDownloadDownload
26B5B-XH-AMDownloadDownloadDownloadDownload
27B6B-XH-ADownloadDownloadDownloadDownload
28B6B-XH-AMDownloadDownloadDownloadDownload
29B7B-XH-ADownloadDownloadDownloadDownload
30B7B-XH-AMDownload
31B8B-XH-ADownloadDownloadDownloadDownload
32B8B-XH-AMDownload
33B9B-XH-ADownloadDownloadDownloadDownload
34B9B-XH-AMDownload
35S10B-XH-ADownloadDownloadDownloadDownload
36S10B-XH-A-1DownloadDownloadDownloadDownload
37S12B-XH-ADownloadDownloadDownloadDownload
38S12B-XH-A-1DownloadDownloadDownloadDownload
39S14B-XH-ADownloadDownloadDownloadDownload
40S14B-XH-A-1DownloadDownloadDownloadDownload
41S16B-XH-ADownloadDownloadDownloadDownload
42S2B-XH-ADownloadDownloadDownloadDownload
43S2B-XH-A-1DownloadDownloadDownloadDownload
44S3B-XH-ADownloadDownloadDownloadDownload
45S3B-XH-A-1DownloadDownloadDownloadDownload
46S4B-XH-ADownloadDownloadDownloadDownload
47S4B-XH-A-1DownloadDownloadDownloadDownload
48S5B-XH-ADownloadDownloadDownloadDownload
49S5B-XH-A-1DownloadDownloadDownloadDownload
50S6B-XH-ADownloadDownloadDownloadDownload
51S6B-XH-A-1DownloadDownloadDownloadDownload
52S7B-XH-ADownloadDownloadDownloadDownload
53S7B-XH-A-1DownloadDownloadDownloadDownload
54S8B-XH-ADownloadDownloadDownloadDownload
55S8B-XH-A-1DownloadDownloadDownloadDownload
56S9B-XH-ADownloadDownloadDownloadDownload
57S9B-XH-A-1DownloadDownloadDownloadDownload
Shopping Site
Product Profile
SeriesNRD connector
CategoryInsulation Displacement Connectors (Wire-to-Board type)
TypeIDC style, Daisy chain connection
Disconnectable type
Specification
Pitch2.5mm
Current rating2A (AWG#24)
Voltage rating250V
PC board mounting directionTop entry, Side entry
Product description
The NRD connector allows 'daisy chain connections' or 'through connections'.
With these simple connections, many signals can be bussed to many different PC boards.
*Twin U-slot ID section
*Fully shrouded header
*The same shrouded header can be used for the XH crimp style connector, the NR and the BR insulation displacement connectors, and the JQ board-to-board connector.

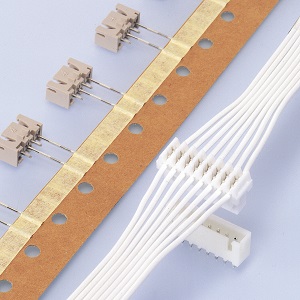

NRD connector
