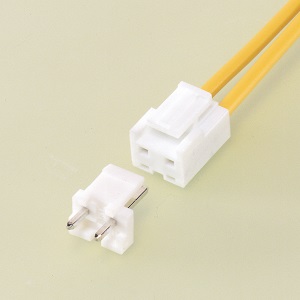

NV connector
Suitable for a wide range of applications, from low-voltage, low-current signal circuits to power supply circuits requiring large currents.
Product Profile
SeriesNV connector
CategoryCrimp Style Connectors (Wire-to-Board type)
PC board
mounting		Through-hole

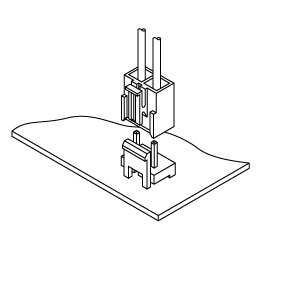

Mating
direction		Top entry
Array
(Insertion part)		Single-row
LockSecure lock (Outer), Secure lock (Center)
StandardCSA, TÜV, UL
Specification
Pitch5mm
Circuit2, 3, 4
Current
rating		10 A AC/DC (AWG #16)
Voltage
rating		250 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,500 VAC for one minute.
Conductor
size		AWG #22,#20,#18,#16
0.33mm2 to 1.25mm2
Insulation O.D.φ1.7mm to φ3mm
Catalog Catalog Manual Manual
Shopping Site NV connector NV connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1B02P-NVDownloadDownloadDownloadDownload
2B03P-NVDownloadDownloadDownloadDownload
3B04P-NVDownloadDownloadDownloadDownload
4NVR-02DownloadDownloadDownloadDownload
5NVR-03DownloadDownloadDownloadDownload
6NVR-04DownloadDownloadDownloadDownload
7SVH-21T-P1.1DownloadDownloadDownloadDownload
8SVH-41T-P1.1DownloadDownloadDownloadDownload
