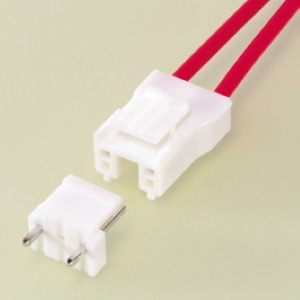

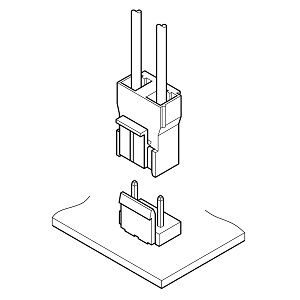

VAJ connector
7.92 mm pitch crimp style, large current carrying capacity connector, that is best suited for various kinds of power supply circuits. Box-shaped contacts offer reliable connection.
Product Profile
SeriesVAJ connector
CategoryCrimp Style Connectors (Wire-to-Board type)
PC board
mounting		Through-hole
Mating
direction		Top entry
Array
(Insertion part)		Single-row
LockSecure lock (Outer), Secure lock (Center)
StandardCSA, TÜV, UL
Specification
Pitch7.92mm
Circuit2
Current
rating		10 A AC/DC (AWG #16)
Voltage
rating		250 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,500 VAC for one minute.
Conductor
size		AWG #20,#18,#16
0.51mm2 to 1.4mm2
Insulation O.D.φ2.7mm to φ3.9mm
Catalog Catalog Manual Manual
VAJ connector VAJ connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SVT-41T-P1.1
-
-
-
Download
2VAJR-02VSDownloadDownloadDownloadDownload
3B2P3-VHDownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
