PAF connector
pdf Catalog pdf Manual 2D3d 3D Data
ProductIGESSTEP3D-PDF
102PAF-6SDownloadDownloadDownload
203PAF-6SDownloadDownloadDownload
304PAF-6SDownloadDownloadDownload
405PAF-6SDownloadDownloadDownload
506PAF-6SDownloadDownloadDownload
607PAF-6SDownloadDownloadDownload
708PAF-6SDownloadDownloadDownload
809PAF-6SDownloadDownloadDownload
910PAF-6SDownloadDownloadDownload
1011PAF-6SDownloadDownloadDownload
1112PAF-6SDownloadDownloadDownload
1213PAF-6SDownloadDownloadDownload
1314PAF-6SDownloadDownloadDownload
1415PAF-6SDownloadDownloadDownload
1516PAF-6SDownloadDownloadDownload
16B02B-PAFYK-1ADownloadDownloadDownload
17B02B-PAFYK-ADownloadDownloadDownload
18B02B-PASKDownloadDownloadDownload
19B02B-PASK-1DownloadDownloadDownload
20B03B-PASKDownloadDownloadDownload
21B03B-PASK-1DownloadDownloadDownload
22B04B-PASKDownloadDownloadDownload
23B04B-PASK-1DownloadDownloadDownload
24B05B-PASKDownloadDownloadDownload
25B05B-PASK-1DownloadDownloadDownload
26B06B-PASKDownloadDownloadDownload
27B06B-PASK-1DownloadDownloadDownload
28B07B-PASKDownloadDownloadDownload
29B07B-PASK-1DownloadDownloadDownload
30B08B-PASKDownloadDownloadDownload
31B08B-PASK-1DownloadDownloadDownload
32B09B-PASKDownloadDownloadDownload
33B09B-PASK-1DownloadDownloadDownload
34B10B-PASKDownloadDownloadDownload
35B10B-PASK-1DownloadDownloadDownload
36B11B-PASKDownloadDownloadDownload
37B11B-PASK-1DownloadDownloadDownload
38B12B-PASKDownloadDownloadDownload
39B12B-PASK-1DownloadDownloadDownload
40B13B-PASKDownloadDownloadDownload
41B13B-PASK-1DownloadDownloadDownload
42B14B-PASKDownloadDownloadDownload
43B14B-PASK-1DownloadDownloadDownload
44B15B-PASKDownloadDownloadDownload
45B15B-PASK-1DownloadDownloadDownload
46BE04B-PASK-CDownloadDownloadDownload
47BE05B-PASKDownloadDownloadDownload
48BE05B-PASK-CDownloadDownloadDownload
49BE06B-PASK-CDownloadDownloadDownload
50BE08B-PASKDownloadDownloadDownload
51BE11B-PASKDownloadDownloadDownload
52BE12B-PASKDownloadDownloadDownload
53BH02B-PASK-1DownloadDownloadDownload
54BH03B-PASK-1DownloadDownloadDownload
55BH04B-PASK-1DownloadDownloadDownload
56BH05B-PASK-1DownloadDownloadDownload
57BH06B-PASK-1DownloadDownloadDownload
58BH07B-PASK-1DownloadDownloadDownload
59BH08B-PASK-1DownloadDownloadDownload
60BH09B-PASK-1DownloadDownloadDownload
61BH10B-PASK-1DownloadDownloadDownload
62BH11B-PASK-1DownloadDownloadDownload
63BH12B-PASK-1DownloadDownloadDownload
64BH15B-PASK-1DownloadDownloadDownload
65BM02B-PASS-1-TFDownloadDownloadDownload
66BM02B-PASS-1-TFTDownloadDownloadDownload
67BM02B-PASS-TFDownloadDownloadDownload
68BM03B-PASS-1-TFDownloadDownloadDownload
69BM03B-PASS-TFDownloadDownloadDownload
70BM04B-PASS-1-TFDownloadDownloadDownload
71BM04B-PASS-TFDownloadDownloadDownload
72BM05B-PASS-1-TFDownloadDownloadDownload
73BM05B-PASS-TFDownloadDownloadDownload
74BM06B-PASS-1-TFDownloadDownloadDownload
75BM06B-PASS-TFDownloadDownloadDownload
76BM07B-PASS-1-TFDownloadDownloadDownload
77BM07B-PASS-TFDownloadDownloadDownload
78BM08B-PASS-1-TFDownloadDownloadDownload
79BM08B-PASS-TFDownloadDownloadDownload
80BM09B-PASS-1-TFDownloadDownloadDownload
81BM09B-PASS-TFDownloadDownloadDownload
82BM10B-PASS-1-TFDownloadDownloadDownload
83BM10B-PASS-TFDownloadDownloadDownload
84BM11B-PASS-1-TFDownloadDownloadDownload
85BM11B-PASS-TFDownloadDownloadDownload
86BM12B-PASS-1-TFDownloadDownloadDownload
87BM12B-PASS-TFDownloadDownloadDownload
88BM13B-PASS-1-TFDownloadDownloadDownload
89BM13B-PASS-TFDownloadDownloadDownload
90BM15B-PASS-1-TFDownloadDownloadDownload
91BM15B-PASS-TFDownloadDownloadDownload
92S02B-PASK-2DownloadDownloadDownload
93S03B-PASK-2DownloadDownloadDownload
94S04B-PASK-2DownloadDownloadDownload
95S05B-PASK-2DownloadDownloadDownload
96S06B-PASK-2DownloadDownloadDownload
97S07B-PASK-2DownloadDownloadDownload
98S08B-PASK-2DownloadDownloadDownload
99S09B-PASK-2DownloadDownloadDownload
100S10B-PASK-2DownloadDownloadDownload
101S11B-PASK-2DownloadDownloadDownload
102S12B-PASK-2DownloadDownloadDownload
103S13B-PASK-2DownloadDownloadDownload
104S14B-PASK-2DownloadDownloadDownload
105S15B-PASK-2DownloadDownloadDownload
106S16B-PASK-2DownloadDownloadDownload
107SM02B-PASS-1-TBDownloadDownloadDownload
108SM02B-PASS-TBDownloadDownloadDownload
109SM03B-PASS-1-TBDownloadDownloadDownload
110SM03B-PASS-TBDownloadDownloadDownload
111SM04B-PASS-1-TBDownloadDownloadDownload
112SM04B-PASS-TBDownloadDownloadDownload
113SM05B-PASS-1-TBDownloadDownloadDownload
114SM05B-PASS-TBDownloadDownloadDownload
115SM06B-PASS-1-TBDownloadDownloadDownload
116SM06B-PASS-TBDownloadDownloadDownload
117SM07B-PASS-1-TBDownloadDownloadDownload
118SM07B-PASS-TBDownloadDownloadDownload
119SM08B-PASS-1-TBDownloadDownloadDownload
120SM08B-PASS-TBDownloadDownloadDownload
121SM09B-PASS-1-TBDownloadDownloadDownload
122SM09B-PASS-TBDownloadDownloadDownload
123SM10B-PASS-1-TBDownloadDownloadDownload
124SM10B-PASS-TBDownloadDownloadDownload
125SM11B-PASS-1-TBDownloadDownloadDownload
126SM11B-PASS-TBDownloadDownloadDownload
127SM12B-PASS-1-TBDownloadDownloadDownload
128SM12B-PASS-TBDownloadDownloadDownload
129SM13B-PASS-1-TBDownloadDownloadDownload
130SM13B-PASS-TBDownloadDownloadDownload
131SM15B-PASS-1-TBDownloadDownloadDownload
132SM15B-PASS-TBDownloadDownloadDownload
Shopping Site
Product Profile
SeriesPAF connector
CategoryInsulation Displacement Connectors (Wire-to-Board type)
TypeIDC style, With secure locking device
Disconnectable type
Specification
Pitch2.0mm
Current rating1A (AWG#26)
Voltage rating100V
PC board mounting directionTop entry, Side entry
Product description

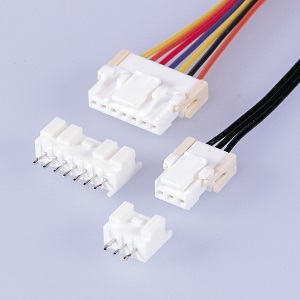

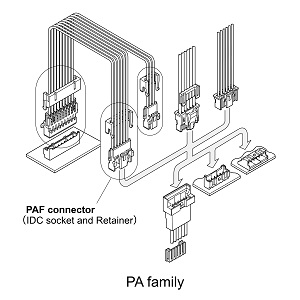

This is the first versatile insulation displacement connector with secure locking device for consumer appliance in the industry. It is one of the 2.0 mm pitch PA family connectors with secure locking device. The header is shared with the PA connector, and also mates with the wire-to-wire PAL connector.

PAF connector
