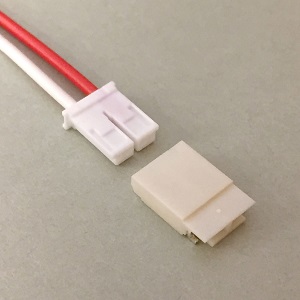

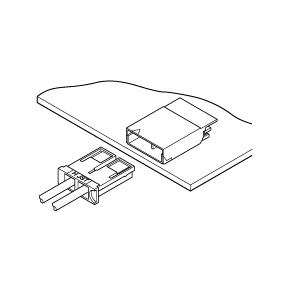

This is wire-to-board connector for LCD backlight power supply. The board occupied area is smaller than our BHS connector designed for the same purpose, and the mounting height is 13% lower than the BHS, achieving 2.8 mm.
Product Profile
| Series | BHL connector |
| Category | Crimp Style Connectors (Wire-to-Board type) |
PC board
mounting | SMT |
Mating
direction | Side entry |
Array
(Insertion part) | Single-row |
| Lock | Friction lock |
| Standard | CSA, UL |
| Others | CCFL power supply |
Specification
| Pitch | 2.3mm |
| Circuit | 2 |
Current
rating | 1 A AC/DC (AWG #24) |
Voltage
rating | 1400 V AC/DC |
Temperature
range | -25℃ to +85℃ |
Insulation
resistance | 1,000MΩ min. |
Withstanding
voltage | There shall be no breakdown or flashover while applying 3,800 VAC for one minute. |
Conductor
size | AWG #28,#26,#24
0.08mm2 to 0.22mm2 |
| Insulation O.D. | φ0.9mm to φ1.7mm |
[Notes]
"-" in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells:
Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
