PHD connector
pdf Catalog pdf Manual 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1B10B-PHDSSDownloadDownloadDownloadDownload
2B10B-PHDSS-BDownloadDownloadDownloadDownload
3B12B-PHDSSDownloadDownloadDownloadDownload
4B12B-PHDSS-BDownloadDownloadDownloadDownload
5B14B-PHDSSDownloadDownloadDownloadDownload
6B14B-PHDSS-BDownloadDownloadDownloadDownload
7B16B-PHDSSDownloadDownloadDownloadDownload
8B16B-PHDSS-BDownloadDownloadDownloadDownload
9B18B-PHDSSDownloadDownloadDownloadDownload
10B18B-PHDSS-BDownloadDownloadDownloadDownload
11B20B-PHDSSDownloadDownloadDownloadDownload
12B20B-PHDSS-BDownloadDownloadDownloadDownload
13B22B-PHDSSDownloadDownloadDownloadDownload
14B22B-PHDSS-BDownloadDownloadDownloadDownload
15B24B-PHDSSDownloadDownloadDownloadDownload
16B24B-PHDSS-BDownloadDownloadDownloadDownload
17B26B-PHDSSDownloadDownloadDownloadDownload
18B26B-PHDSS-BDownloadDownloadDownloadDownload
19B28B-PHDSSDownloadDownloadDownloadDownload
20B28B-PHDSS-BDownloadDownloadDownloadDownload
21B30B-PHDSSDownloadDownloadDownloadDownload
22B30B-PHDSS-BDownloadDownloadDownloadDownload
23B32B-PHDSSDownloadDownloadDownloadDownload
24B32B-PHDSS-BDownloadDownloadDownloadDownload
25B34B-PHDSSDownloadDownloadDownloadDownload
26B34B-PHDSS-BDownloadDownloadDownloadDownload
27B8B-PHDSSDownloadDownloadDownloadDownload
28PHDR-08VSDownloadDownloadDownloadDownload
29PHDR-10VSDownloadDownloadDownloadDownload
30PHDR-12VSDownloadDownloadDownloadDownload
31PHDR-14VSDownloadDownloadDownloadDownload
32PHDR-16VSDownloadDownloadDownloadDownload
33PHDR-18VSDownloadDownloadDownloadDownload
34PHDR-20VSDownloadDownloadDownloadDownload
35PHDR-22VSDownloadDownloadDownloadDownload
36PHDR-24VSDownloadDownloadDownloadDownload
37PHDR-26VSDownloadDownloadDownloadDownload
38PHDR-28VSDownloadDownloadDownloadDownload
39PHDR-30VSDownloadDownloadDownloadDownload
40PHDR-32VSDownloadDownloadDownloadDownload
41PHDR-34VSDownloadDownloadDownloadDownload
42S10B-PHDSSDownloadDownloadDownloadDownload
43S10B-PHDSS-BDownloadDownloadDownloadDownload
44S12B-PHDSSDownloadDownloadDownloadDownload
45S12B-PHDSS-BDownloadDownloadDownloadDownload
46S14B-PHDSSDownloadDownloadDownloadDownload
47S14B-PHDSS-BDownloadDownloadDownloadDownload
48S16B-PHDSSDownloadDownloadDownloadDownload
49S16B-PHDSS-BDownloadDownloadDownloadDownload
50S18B-PHDSSDownloadDownloadDownloadDownload
51S18B-PHDSS-BDownloadDownloadDownloadDownload
52S20B-PHDSSDownloadDownloadDownloadDownload
53S20B-PHDSS-BDownloadDownloadDownloadDownload
54S22B-PHDSSDownloadDownloadDownloadDownload
55S22B-PHDSS-BDownloadDownloadDownloadDownload
56S24B-PHDSSDownloadDownloadDownloadDownload
57S24B-PHDSS-BDownloadDownloadDownloadDownload
58S26B-PHDSSDownloadDownloadDownloadDownload
59S26B-PHDSS-BDownloadDownloadDownloadDownload
60S28B-PHDSSDownloadDownloadDownloadDownload
61S28B-PHDSS-BDownloadDownloadDownloadDownload
62S30B-PHDSSDownloadDownloadDownloadDownload
63S30B-PHDSS-BDownloadDownloadDownloadDownload
64S32B-PHDSSDownloadDownloadDownloadDownload
65S32B-PHDSS-BDownloadDownloadDownloadDownload
66S34B-PHDSSDownloadDownloadDownloadDownload
67S34B-PHDSS-BDownloadDownloadDownloadDownload
68S8B-PHDSSDownloadDownloadDownloadDownload
69SPHD-001T-P0.5DownloadDownloadDownloadDownload
70SPHD-002T-P0.5DownloadDownloadDownloadDownload
Shopping Site
Product Profile
SeriesPHD connector
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeCrimp style, Double-row
Disconnectable type
Specification
Pitch2.0mm
Current rating3A (AWG#22)
Voltage rating250V
PC board mounting directionTop entry, Side entry
Product description

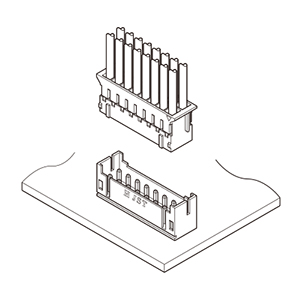

This is a 2.0 mm pitch dual-row wire-to-board connector. With a mounting height of 8.8 mm and a depth of 5 mm, the low-profile, space-saving design supports the miniaturization and high-density design of devices.

PHD connector
