RIZ connector
pdf Catalog pdf Manual 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
104CZ-6HDownloadDownloadDownloadDownload
204P-RIZ-K2GG-RLDownloadDownloadDownloadDownload
304R-RIZ-K4GG-FLDownloadDownloadDownloadDownload
406CZ-6HDownloadDownloadDownloadDownload
506P-RIZ-K2GG-RLDownloadDownloadDownloadDownload
606R-RIZ-K4GG-FLDownloadDownloadDownloadDownload
707CZ-6HDownloadDownloadDownloadDownload
807P-RIZ-K2GG-S3RLDownloadDownloadDownloadDownload
907R-RIZ-K4GG-SQ3FLDownloadDownloadDownloadDownload
1008CZ-6HDownloadDownloadDownloadDownload
1108P-RIZ-K2GG-RLDownloadDownloadDownloadDownload
1208P-RIZ-K2GG-S3RLDownloadDownloadDownloadDownload
1308R-RIZ-K4GG-FLDownloadDownloadDownloadDownload
1408R-RIZ-K4GG-SQ3FLDownloadDownloadDownloadDownload
1510CZ-6HDownloadDownloadDownloadDownload
1610P-RIZ-K2GG-RLDownloadDownloadDownloadDownload
1710R-RIZ-K4GG-FLDownloadDownloadDownloadDownload
1813CZ-6HDownloadDownloadDownloadDownload
1913P-RIZ-K2GG-S3RLDownloadDownloadDownloadDownload
2013R-RIZ-K4GG-SQ3FLDownloadDownloadDownloadDownload
2114CZ-6HDownloadDownloadDownloadDownload
2214P-RIZ-K2GG-RLDownloadDownloadDownloadDownload
2314R-RIZ-K4GG-FLDownloadDownloadDownloadDownload
24CZHR-04V-SDownloadDownloadDownloadDownload
25CZHR-06V-SDownloadDownloadDownloadDownload
26CZHR-07V-SDownloadDownloadDownloadDownload
27CZHR-08V-SDownloadDownloadDownloadDownload
28CZHR-10V-SDownloadDownloadDownloadDownload
29CZHR-13V-SDownloadDownloadDownloadDownload
30CZHR-14V-SDownloadDownloadDownloadDownload
31SCZH-002T-P0.5DownloadDownloadDownloadDownload
32SRWF-01GG-M0.6Download
33SRWF-21GG-M0.6Download
34SRWF-61GG-M0.6Download
35SRWM-01GG-S0.6Download
36SRWM-21GG-S0.6Download
37SRWM-61GG-S0.6Download
Shopping Site
Product Profile

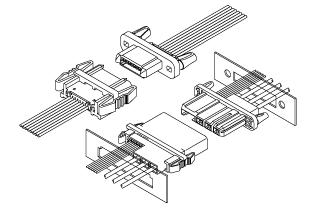

SeriesRIZ connector
CategoryWire-to-Wire Connectors
TypeDrawer connector, Single-row
FeatureHigh electric current capacity
Specification
Current ratingSignal circuit/1.0A(AWG#26)
Power supply circuit/15A(AWG#14)
Voltage ratingSignal circuit/50V
Power supply circuit/250V
Product description
In unit connection, this RIZ connector is a hybrid type connector with combined signal and power supply circuits, absorbs misalignment between units, and excels durability.
*Pitch for signal circuits is 1.5mm. Single row realizes slim design 9.0mm and space reducing.

RIZ connector
