HOME > Product Profile

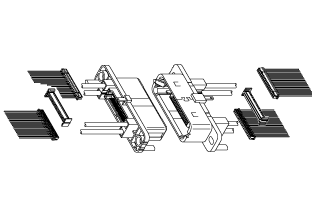

RPZ connector
Power supply circuit and signal circuit integrated hybrid type drawer connector.
Product Profile
SeriesRPZ connector
CategoryWire-to-Wire Connectors
Panel
mounting		Screw lock
Array
(Insertion part)		Dual-row
Mating
assist		Absorbing of misalignment, Drawer
HybridYes
StandardCSA, TÜV, UL
OthersESD
Specification
Pitch1.5mm
Circuit20, 24, 26, 32, 40
Current
rating		1 A AC/DC (Signal circuit, AWG #26)
15 A AC/DC (Power supply circuit, AWG #14)
Voltage
rating		50 V AC/DC (Signal circuit)
250 V AC/DC (Power supply circuit)
Temperature
range		-25℃ to +85℃
Insulation
resistance		500MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,500 VAC for one minute.
Conductor
size		AWG #28,#26 (Signal circuit)
AWG #24,#22,#20,#18,#16,#14 (Power supply circuit)
0.08mm2 to 0.13mm2 (Signal circuit)
0.2mm2 to 2mm2 (Power supply circuit)
Insulation O.D.φ0.7mm to φ0.83mm (Signal circuit)
φ1.4mm to φ3.6mm (Power supply circuit)
RemarksApplicable signal connector: CZ connector
Catalog Catalog Manual Manual
Shopping Site RPZ connector RPZ connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
110CZ-6HDownloadDownloadDownloadDownload
212CZ-6HDownloadDownloadDownloadDownload
313CZ-6HDownloadDownloadDownloadDownload
416CZ-6HDownloadDownloadDownloadDownload
520CZ-6HDownloadDownloadDownloadDownload
620P-RPZV-K4GGDownloadDownloadDownload
720R-RPZV-K2GGDownloadDownloadDownload
824P-RPZV-K4GGDownloadDownloadDownload
924R-RPZV-K2GGDownloadDownloadDownload
1026P-RPZV-K4GGDownloadDownloadDownload
1126R-RPZV-K2GGDownloadDownloadDownload
1232P-RPZV-K4GGDownloadDownloadDownload
1332R-RPZV-K2GGDownloadDownloadDownload
1440P-RPZV-K4GGDownloadDownloadDownload
1540R-RPZV-K2GGDownloadDownloadDownload
16CZWH-20-SDownloadDownloadDownloadDownload
17CZWH-24-SDownloadDownloadDownloadDownload
18CZWH-26-SDownloadDownloadDownloadDownload
19CZWH-32-SDownloadDownloadDownloadDownload
20CZWH-40-SDownloadDownloadDownloadDownload
21PS-110DownloadDownloadDownloadDownload
22SPS-01T-110DownloadDownloadDownloadDownload
23SPS-41T-110Download
