RWZ connector
pdf Catalog pdf Manual 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
104CZ-6HDownloadDownloadDownloadDownload
205CZ-6HDownloadDownloadDownloadDownload
306CZ-6HDownloadDownloadDownloadDownload
407CZ-6HDownloadDownloadDownloadDownload
509CZ-6HDownloadDownloadDownloadDownload
609P-RWZV-K4GG-P4DownloadDownloadDownloadDownload
709R-RWZV-K2GG-P4DownloadDownloadDownloadDownload
810CZ-6HDownloadDownloadDownloadDownload
911CZ-6HDownloadDownloadDownloadDownload
1012CZ-6HDownloadDownloadDownloadDownload
1113CZ-6HDownloadDownloadDownloadDownload
1213P-RWZV-K4GG-P4DownloadDownloadDownloadDownload
1313R-RWZV-K2GG-P4DownloadDownloadDownloadDownload
1415CZ-6HDownloadDownloadDownloadDownload
1516CZ-6HDownloadDownloadDownloadDownload
1617CZ-6HDownloadDownloadDownloadDownload
1719CZ-6HDownloadDownloadDownloadDownload
1819P-RWZV-K4GG-P6DownloadDownloadDownloadDownload
1919R-RWZV-K2GG-P6DownloadDownloadDownloadDownload
2020CZ-6HDownloadDownloadDownloadDownload
2121P-RWZV-K4GG-P4DownloadDownloadDownloadDownload
2221R-RWZV-K2GG-P4DownloadDownloadDownloadDownload
2323P-RWZV-K4GG-P6DownloadDownloadDownloadDownload
2423R-RWZV-K2GG-P6DownloadDownloadDownloadDownload
2525P-RWZV-K4GGDownloadDownloadDownloadDownload
2625R-RWZV-K2GGDownloadDownloadDownloadDownload
2731P-RWZV-K4GGDownloadDownloadDownloadDownload
2831R-RWZV-K2GGDownloadDownloadDownloadDownload
2933P-RWZV-K4GGDownloadDownloadDownloadDownload
3033R-RWZV-K2GGDownloadDownloadDownloadDownload
3139P-RWZV-K4GG-P2DownloadDownloadDownloadDownload
3239R-RWZV-K2GG-P2DownloadDownloadDownloadDownload
33CZHR-04V-SDownloadDownloadDownloadDownload
34CZHR-05V-SDownloadDownloadDownloadDownload
35CZHR-06V-SDownloadDownloadDownloadDownload
36CZHR-07V-SDownloadDownloadDownloadDownload
37CZHR-09V-SDownloadDownloadDownloadDownload
38CZHR-10V-SDownloadDownloadDownloadDownload
39CZHR-11V-SDownloadDownloadDownloadDownload
40CZHR-12V-SDownloadDownloadDownloadDownload
41CZHR-13V-SDownloadDownloadDownloadDownload
42CZHR-15V-SDownloadDownloadDownloadDownload
43CZHR-16V-SDownloadDownloadDownloadDownload
44CZHR-17V-SDownloadDownloadDownloadDownload
45CZHR-19V-SDownloadDownloadDownloadDownload
46CZHR-20V-SDownloadDownloadDownloadDownload
47SCZH-002T-P0.5DownloadDownloadDownloadDownload
48SRWF-01GG-M0.6Download
49SRWF-21GG-M0.6Download
50SRWF-61GG-M0.6Download
51SRWM-01GG-S0.6Download
52SRWM-21GG-S0.6Download
53SRWM-61GG-S0.6Download
Shopping Site
Product Profile
SeriesRWZ connector
CategoryWire-to-Wire Connectors
TypeDrawer connector, Double-row
FeatureHigh electric current capacity
Specification
Current ratingSignal circuit/1.0A(AWG#26)
Power supply circuit/15A(AWG#14)
Voltage ratingSignal circuit/50V
Power supply citcuit/250V
Product description
In unit connection, this RWZ connector is a hybrid type double row drawer connector with combined signal and power supply circuits, absorbs misalignment between units, and excels durability.
*Pitch for signal circuits is 1.5mm realizes space reducing of drawer connector.

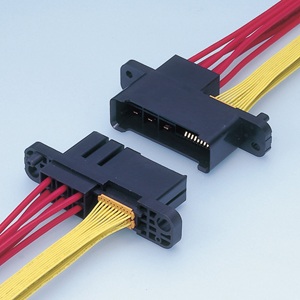

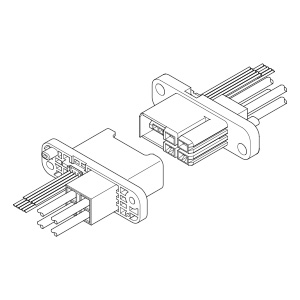

RWZ connector
