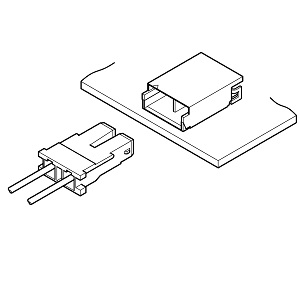

BHS connector (Wire-to-Board)
Low profile connectors with high withstanding voltage, designed for connecting liquid crystal display back light lamps to their starters.
*SMT configuration
*Its crimp style contact can be inserted into the housing with little force, thus making them suitable for use with flexible wires such as those insulated with silicone rubber.
Product Profile
SeriesBHS connector (Wire-to-Board)
CategoryCrimp Style Connectors (Wire-to-Board type)
PC board
mounting		SMT
Mating
direction		Side entry
Array
(Insertion part)		Single-row
LockFriction lock
Connection
variations		Wire-to-wire type available
StandardCSA, UL
OthersCCFL power supply
Specification
Pitch3.5 mm
Circuit2
Current
rating		1 A AC/DC (AWG #24)
Voltage
rating		1400 V AC/DC
Temperature
range		-25 ℃ to +85 ℃
Insulation
resistance		1,000 MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 3,800 VAC for one minute.
Conductor
size		AWG # 28 , # 26 , # 24
0.08 mm2 to 0.22 mm2
Insulation O.D.φ 0.9 mm to φ 1.7 mm
RemarksWire-to-Wire type available
Catalog Catalog Manual Manual
BHS connector (Wire-to-Board) BHS connector (Wire-to-Board)

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SBHS-002T-P0.5A
-
-
-
Download
2BHSR-02VS-1(N)DownloadDownloadDownloadDownload
3SM02B-BHSS-1-TBDownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
