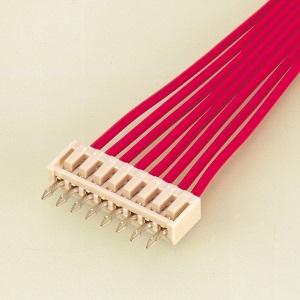

SCN connector

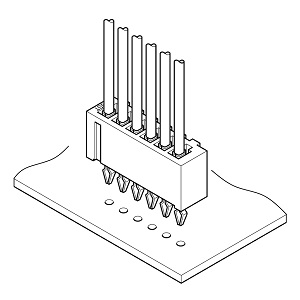

This 2.5 mm pitch multi-circuit board-in connector meets the needs for high-density mounting on printed circuit boards efficiently and economically. The connector can be used for VCRs, car stereo systems, audio products, and many other consumer-oriented electronic products.
Product Profile
SeriesSCN connector
CategoryCrimp Style Connectors (Wire-to-Board Board-in type)
Array
(Insertion part)		Single-row
StandardUL
Specification
Pitch2.5mm
Circuit2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16
Current
rating		3 A AC/DC (AWG #22)
Voltage
rating		250 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 800 VAC for one minute.
Conductor
size		AWG #28,#26,#24,#22
0.08mm2 to 0.33mm2
Insulation O.D.φ0.9mm to φ1.7mm
Catalog Catalog Manual Manual
Shopping Site SCN connector SCN connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
110P-SCNDownloadDownloadDownloadDownload
211P-SCNDownloadDownloadDownloadDownload
312P-SCNDownloadDownloadDownloadDownload
413P-SCNDownloadDownloadDownloadDownload
514P-SCNDownloadDownloadDownloadDownload
615P-SCNDownloadDownloadDownloadDownload
716P-SCNDownloadDownloadDownloadDownload
82P-SCNDownloadDownloadDownloadDownload
93P-SCNDownloadDownloadDownloadDownload
104P-SCNDownloadDownloadDownloadDownload
115P-SCNDownloadDownloadDownloadDownload
126P-SCNDownloadDownloadDownloadDownload
137P-SCNDownloadDownloadDownloadDownload
148P-SCNDownloadDownloadDownloadDownload
159P-SCNDownloadDownloadDownloadDownload
16SCN-001T-1.0KDownloadDownloadDownloadDownload
17SCN-001T-P1.0DownloadDownloadDownloadDownload
