SDF connector

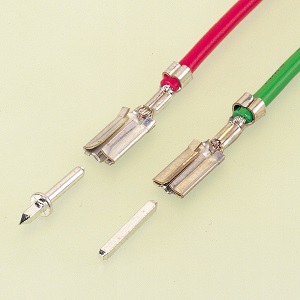

This connector is used for 1.3 mm diameter and 1.0 mm square contacts. It can connect wires on high-density printed circuit boards in the same manner as JST's SMF connectors. It provides a high pressure connection to the post for exceptional reliability.
Product Profile
SeriesSDF connector
CategoryCrimp Style Connectors (Wire-to-Board type)

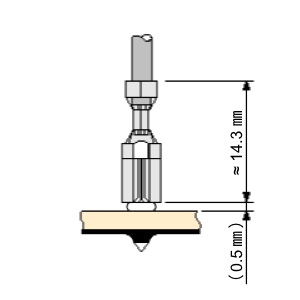

PC board
mounting		Through-hole
Specification
Circuit1
Current
rating		5 A AC/DC
Temperature
range		-25℃ to +85℃
Conductor
size		AWG #24,#22,#20
0.2mm2 to 0.5mm2
Insulation O.D.φ1.5mm to φ2.7mm
Catalog Catalog Manual Manual
SDF connector SDF connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1RT-01T-1.3BDownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
