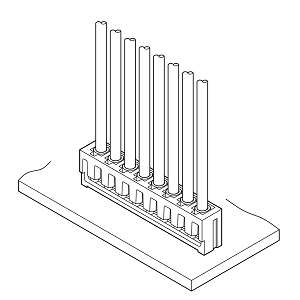

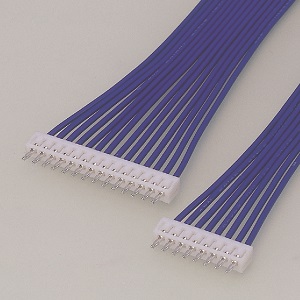

SGN connector
A dimension of 2.0 mm pitch, 4.0 mm mounting height and 2.9 mm depth. This board-in type connector will enhance the mounting density of the PC board even further as well as improve rationalization and reduce the total cost of production. This product will be suitable for the internal connector of low profile equipment, such as audio equipment (including car audio) and the STB.
Product Profile
SeriesSGN connector
CategoryCrimp Style Connectors (Wire-to-Board Board-in type)
Array
(Insertion part)		Single-row
StandardUL
Specification
Pitch2 mm
Circuit8, 13, 14
Current
rating		2 A AC/DC (AWG #24)
Voltage
rating		250 V AC/DC
Temperature
range		-25 ℃ to +85 ℃
Insulation
resistance		1,000 MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 650 VAC for one minute.
Conductor
size		AWG # 28 , # 26 , # 24
0.08 mm2 to 0.22 mm2
Insulation O.D.φ 1 mm to φ 1.4 mm
Catalog Catalog
SGN connector SGN connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SGN-002T-0.8S
-
-
-
Download
28P-SGNDownloadDownloadDownloadDownload
313P-SGNDownloadDownloadDownloadDownload
414P-SGNDownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
