SHD connector
pdf Catalog pdf Manual 3d 3D Data
ProductIGESSTEPAcrobat3D
1BM20B-SRDS-G-TFDownloadDownloadDownload
2BM30B-SRDS-A-G-TFDownloadDownloadDownload
3BM30B-SRDS-G-TFDownloadDownloadDownload
4BM40B-SRDS-G-TFDownloadDownloadDownload
5BM50B-SRDS-G-TFDownloadDownloadDownload
6SHDR-20V-S-BDownloadDownloadDownload
7SHDR-30V-S-BDownloadDownloadDownload
8SHDR-40V-S-BDownloadDownloadDownload
9SHDR-50V-S-BDownloadDownloadDownload
10SM20B-SRDS-G-TFDownloadDownloadDownload
11SM30B-SRDS-G-TFDownloadDownloadDownload
12SM40B-SRDS-G-TFDownloadDownloadDownload
13SM50B-SRDS-G-TFDownloadDownloadDownload
Shopping Site
Product Profile
SeriesSHD connector
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeCrimp style, Compact type, Double-row
Disconnectable type
Specification
Pitch1.0mm
Current rating1.0A (AWG#28)
Voltage rating50V
PC board mounting directionTop entry, Side entry
Product description
*Compact, double-row design
*Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment.
*The receptacle has protrusions on both ends for an operator to disengage the receptacle from the header without holding the wires.

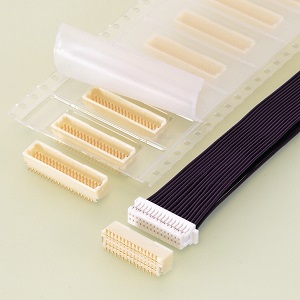

SHD connector
