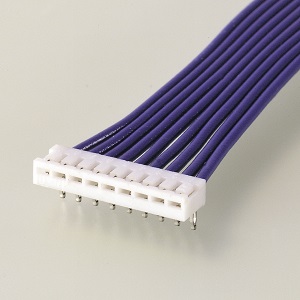

SJN connector

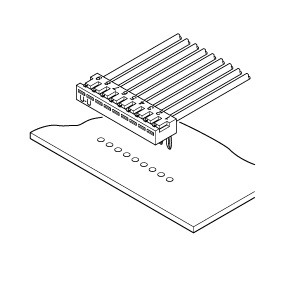

Side entry type board-in connector, with a mounting height of only 2.8 mm and a thickness of 4.9 mm.
Product Profile
SeriesSJN connector
CategoryCrimp Style Connectors (Wire-to-Board Board-in type)
Array
(Insertion part)		Single-row
StandardUL
OthersSide-Feed
Specification
Pitch2mm
Circuit2, 3, 4, 6, 7, 8, 9, 10, 11
Current
rating		3 A AC/DC (AWG #22)
Voltage
rating		250 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 800 VAC for one minute.
Conductor
size		AWG #28,#26,#24,#22
0.08mm2 to 0.33mm2
Insulation O.D.φ0.9mm to φ1.4mm
Catalog Catalog Manual Manual
Shopping Site SJN connector SJN connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
102P-SJNDownloadDownloadDownloadDownload
203P-SJNDownloadDownloadDownloadDownload
304P-SJNDownloadDownloadDownloadDownload
406P-SJNDownloadDownloadDownloadDownload
507P-SJNDownloadDownloadDownloadDownload
608P-SJNDownloadDownloadDownloadDownload
709P-SJNDownloadDownloadDownloadDownload
810P-SJNDownloadDownloadDownloadDownload
911P-SJNDownloadDownloadDownloadDownload
10SJN-001PT-0.9DownloadDownloadDownloadDownload
11SJN-002PT-0.9DownloadDownloadDownloadDownload
