SL connector

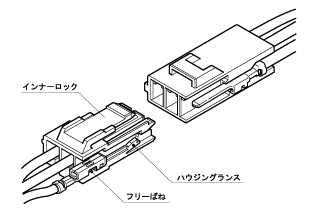

*The low insertion force contacts reduce surface finish wear and reduce the effects of stress relaxation.
*Housing lances
*The inner-housing lock secures the plug to the receptacle and prevents accidental disconnection.
Product Profile
SeriesSL connector
CategoryWire-to-Wire Connectors
Wiring
type		Crimp style
Panel
mounting		Free-hanging
Array
(Insertion part)		Single-row, Dual-row
LockSecure lock (Inner), Secure lock (Center)
StandardCSA, TÜV, UL, PSE
Specification
Pitch3.96mm
Circuit1, 2, 3, 4, 6
Current
rating		7 A AC/DC (1 circuit, AWG #18)
2 A AC/DC (6 circuits, AWG #26)
Voltage
rating		300 V AC/DC
Temperature
range		-25℃ to +90℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,500 VAC for one minute.
Conductor
size		AWG #26,#24,#22,#20,#18
0.13mm2 to 0.75mm2
Insulation O.D.φ1.3mm to φ2.5mm
Catalog Catalog Manual Manual
Shopping Site SL connector SL connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SLP-01VDownloadDownloadDownloadDownload
2SLP-02VDownloadDownloadDownloadDownload
3SLP-03VDownloadDownloadDownloadDownload
4SLP-04VDownloadDownloadDownloadDownload
5SLP-06VDownloadDownloadDownloadDownload
6SLR-01VFDownloadDownloadDownloadDownload
7SLR-02VFDownloadDownloadDownloadDownload
8SLR-03VFDownloadDownloadDownloadDownload
9SLR-04VFDownloadDownloadDownloadDownload
10SLR-06VFDownloadDownloadDownloadDownload
11SSF-01T-P1.4DownloadDownloadDownloadDownload
12SSF-21T-P1.4DownloadDownloadDownloadDownload
13SSM-01T-P1.4DownloadDownloadDownloadDownload
14SSM-21T-P1.4DownloadDownloadDownloadDownload
