SMF connector

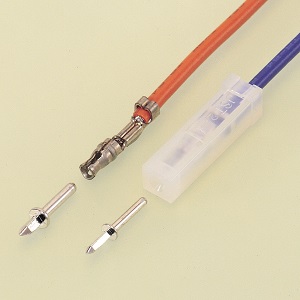

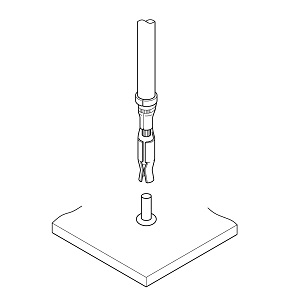

This small single-circuit connector connects to 1.0 mm and 1.3 mm diameter pins and requires only minimal space for connection of wires to high-density printed circuit boards. The SMF connector has a funnel shaped lead-in to ease insertion and to ensure a balance with its high retaining force.
Product Profile
SeriesSMF connector
CategoryCrimp Style Connectors (Wire-to-Board type)
PC board
mounting		Through-hole
StandardCSA, UL
Specification
Circuit1
Current
rating		5 A AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 500 VAC for one minute.
Conductor
size		AWG #26,#24,#22,#20
0.13mm2 to 0.5mm2
Insulation O.D.φ1.3mm to φ2.7mm
Catalog Catalog Manual Manual
SMF connector SMF connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SMF-01T-1.0
-
-
-
Download
2SMF-01T-1.3
-
-
-
Download
31P-SMFDownloadDownloadDownloadDownload
4RT-01T-1.0BDownloadDownloadDownloadDownload
5RT-01T-1.3BDownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
