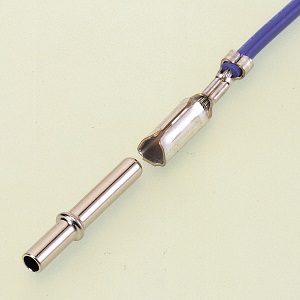

This connector is used with 2.36 mm diameter GT pins. The SPF connector has a large contact area, withstands stress caused by repeated insertions and removals, and provides excellent retaining force. It is best suited for circuit connections that require a large current.
Product Profile
| Series | SPF connector |
| Category | Crimp Style Connectors (Wire-to-Board type) |
PC board
mounting | Through-hole |
Specification
| Circuit | 1 |
Current
rating | 5 A AC/DC |
Temperature
range | -25℃ to +85℃ |
Conductor
size | AWG #24,#22,#20
0.2mm2 to 0.5mm2 |
| Insulation O.D. | φ1.6mm to φ2.7mm |
