HOME > Product Profile

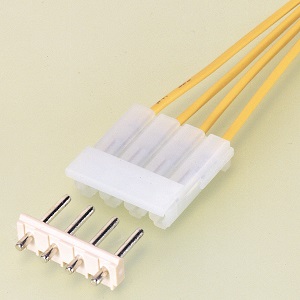

SV connector
The directional features of the housing prevent reverse contact insertion.
*The housings with two or four circuits have locking mechanisms. This feature provides polarization and prevents misinsertion.
Product Profile
SeriesSV connector
CategoryCrimp Style Connectors (Wire-to-Board type)
PC board
mounting		Through-hole

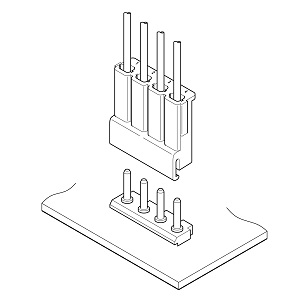

Mating
direction		Top entry
Array
(Insertion part)		Single-row
LockFriction lock
StandardCSA, TÜV, UL
Specification
Pitch5mm
Circuit2, 4, 6, 8, 10
Current
rating		5 A AC/DC (AWG #20)
Voltage
rating		250 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,500 VAC for one minute.
Conductor
size		AWG #24,#22,#20
0.2mm2 to 0.5mm2
Insulation O.D.φ1.5mm to φ2.5mm
Catalog Catalog Manual Manual
SV connector SV connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SVF-01T-1.5N
-
-
-
Download
2S2P-SVFDownloadDownloadDownloadDownload
3S4P-SVFDownloadDownloadDownloadDownload
4S6P-SVFDownloadDownloadDownloadDownload
5S8P-SVFDownloadDownloadDownloadDownload
6S10P-SVFDownloadDownloadDownloadDownload
7RTB-1.5-02FDownloadDownloadDownloadDownload
8RTB-1.5-04FDownloadDownloadDownloadDownload
9RTB-1.5-06FDownloadDownloadDownloadDownload
10RTB-1.5-08FDownloadDownloadDownloadDownload
11RTB-1.5-10FDownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
