SZN connector

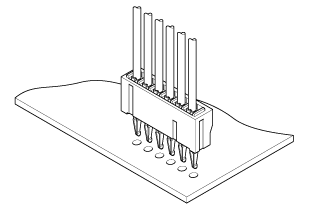

This low-profile, board-in connector, with a mounting height of only 4.25 mm and a thickness of 2.4 mm, is soldered directly onto printed circuit boards. The solder tail of the contact is resilient for easy assembly. The housing lances facilitate insertion of contacts.
Product Profile
SeriesSZN connector
CategoryCrimp Style Connectors (Wire-to-Board Board-in type)
Array
(Insertion part)		Single-row
StandardCSA, UL
Specification
Pitch1.5 mm
Circuit2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Current
rating		0.7 A AC/DC (AWG #26)
Voltage
rating		50 V AC/DC
Temperature
range		-25 ℃ to +85 ℃
Insulation
resistance		500 MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 500 VAC for one minute.
Conductor
size		AWG # 30 , # 28 , # 26
0.05 mm2 to 0.13 mm2
Insulation O.D.φ 0.7 mm to φ 1.1 mm
Catalog Catalog Manual Manual
SZN connector SZN connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SZN-002T-P0.7KDownloadDownloadDownloadDownload
2SZN-003T-P0.7K
-
-
-
Download
32P-SZNDownloadDownloadDownloadDownload
43P-SZNDownloadDownloadDownloadDownload
54P-SZNDownloadDownloadDownloadDownload
65P-SZNDownloadDownloadDownloadDownload
76P-SZNDownloadDownloadDownloadDownload
87P-SZNDownloadDownloadDownloadDownload
98P-SZNDownloadDownloadDownloadDownload
109P-SZNDownloadDownloadDownloadDownload
1110P-SZNDownloadDownloadDownloadDownload
1211P-SZNDownloadDownloadDownloadDownload
1312P-SZNDownloadDownloadDownloadDownload
1413P-SZNDownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
