TSD connector
pdf Catalog pdf Manual 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1STS-002GG-P0.6Download
2STSD-002GG-P0.6Download
3TSDP-12V-KDownloadDownloadDownloadDownload
4TSDP-20V-KDownloadDownloadDownloadDownload
5TSDR-12V-KDownloadDownloadDownloadDownload
6TSDR-20V-KDownloadDownloadDownloadDownload
Shopping Site
Product Profile
SeriesTSD connector
CategoryWire-to-Wire Connectors
TypeI/O connector, Drawer connector
Specification
Current rating2A (AWG#24)
Voltage ratingSignal circuit/30V
Power supply circuit/300V
Product description
This hybrid type drawer connector shares a single design contact between signal and power lines.
*The signal contact can be used both for the power and for the signal connections.
*Misalignment correction
*Highly-reliable contact performance

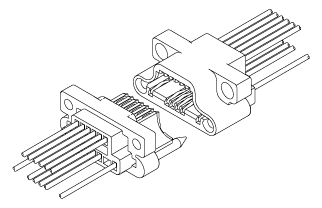

TSD connector
