VT connector

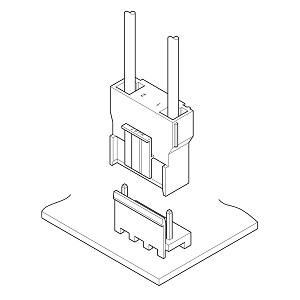

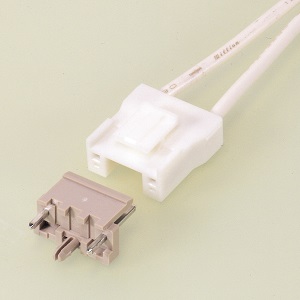

The VT connector is a 11.88 mm pitch disconnectable crimp style connector with current rating of 12 A. It has features such as the PC board locking device, misinsertion preventive construction and arm-lock mechanism. Its header is applicable to reinforced PC boards with eyelets.
Product Profile
SeriesVT connector
CategoryCrimp Style Connectors (Wire-to-Board type)
PC board
mounting		Through-hole
Mating
direction		Side entry, Top entry
Array
(Insertion part)		Single-row
LockSecure lock (Outer), Secure lock (Center)
StandardCSA, TÜV, UL
Specification
Pitch11.88mm
Circuit2
Current
rating		12 A AC/DC (AWG #16)
Voltage
rating		250 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,500 VAC for one minute.
Conductor
size		AWG #20,#18,#16
0.51mm2 to 1.4mm2
Insulation O.D.φ2.7mm to φ3.9mm
Catalog Catalog Manual Manual
Shopping Site VT connector VT connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1B02B-VTDownloadDownloadDownloadDownload
2S02B-VTDownloadDownloadDownloadDownload
3SVT-41T-P1.1Download
4VTR-02DownloadDownloadDownloadDownload
