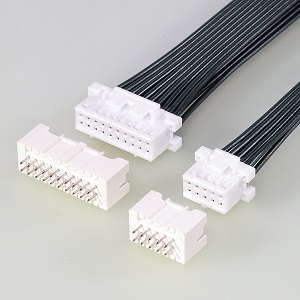

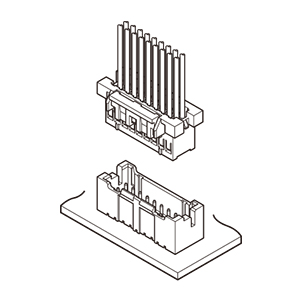

XAD connector (Wire-to-Board)
Product Profile
SeriesXAD connector (Wire-to-Board)
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeCrimp style, Double-row, With secure locking device
Disconnectable type
FeatureWith secure locking device
Specification
Pitch2.5mm
Current rating3A (AWG#20)
Voltage rating250V
PC board mounting directionTop entry, Side entry
Product description
*Double-row construction
*Header wafer is made of solder crack preventive material, glass-filled PA66 nylon.
*Secure locking device prevents accidental disconnection.

XAD connector (Wire-to-Board)



pdf Catalog pdf Manual 3d 3D Data
ProductIGESSTEPAcrobat3D
1B08B-XADSS-NDownloadDownloadDownload
2B08B-XADSS-N-ADownloadDownloadDownload
3B10B-XADSS-NDownloadDownloadDownload
4B10B-XADSS-N-ADownloadDownloadDownload
5B12B-XADSS-NDownloadDownloadDownload
6B12B-XADSS-N-ADownloadDownloadDownload
7B14B-XADSS-NDownloadDownloadDownload
8B14B-XADSS-N-ADownloadDownloadDownload
9B16B-XADSS-NDownloadDownloadDownload
10B16B-XADSS-N-ADownloadDownloadDownload
11B18B-XADSS-NDownloadDownloadDownload
12B18B-XADSS-N-ADownloadDownloadDownload
13B20B-XADSS-NDownloadDownloadDownload
14B20B-XADSS-N-ADownloadDownloadDownload
15B22B-XADSS-NDownloadDownloadDownload
16B22B-XADSS-N-ADownloadDownloadDownload
17B24B-XADSS-NDownloadDownloadDownload
18B24B-XADSS-N-ADownloadDownloadDownload
19B26B-XADSS-NDownloadDownloadDownload
20B26B-XADSS-N-ADownloadDownloadDownload
21B28B-XADSS-NDownloadDownloadDownload
22B28B-XADSS-N-ADownloadDownloadDownload
23B30B-XADSS-NDownloadDownloadDownload
24B30B-XADSS-N-ADownloadDownloadDownload
25B32B-XADSS-NDownloadDownloadDownload
26B32B-XADSS-N-ADownloadDownloadDownload
27B34B-XADSS-NDownloadDownloadDownload
28B34B-XADSS-N-ADownloadDownloadDownload
29B36B-XADSS-NDownloadDownloadDownload
30B36B-XADSS-N-ADownloadDownloadDownload
31B40B-XADSS-NDownloadDownloadDownload
32B40B-XADSS-N-ADownloadDownloadDownload
33S08B-XADSS-NDownloadDownloadDownload
34S10B-XADSS-NDownloadDownloadDownload
35S12B-XADSS-NDownloadDownloadDownload
36S14B-XADSS-NDownloadDownloadDownload
37S16B-XADSS-NDownloadDownloadDownload
38S18B-XADSS-NDownloadDownloadDownload
39S20B-XADSS-NDownloadDownloadDownload
40S26B-XADSS-NDownloadDownloadDownload
41SXA-001T-P0.6DownloadDownloadDownload
42SXA-001T-P0.6LDownloadDownloadDownload
43SXA-01T-P0.6DownloadDownloadDownload
44XADRP-08VDownloadDownloadDownload
45XADRP-10VDownloadDownloadDownload
46XADRP-12VDownloadDownloadDownload
47XADRP-14VDownloadDownloadDownload
48XADRP-16VDownloadDownloadDownload
49XADRP-18VDownloadDownloadDownload
50XADRP-20VDownloadDownloadDownload
51XADRP-22VDownloadDownloadDownload
52XADRP-24VDownloadDownloadDownload
53XADRP-26VDownloadDownloadDownload
54XADRP-28VDownloadDownloadDownload
55XADRP-30VDownloadDownloadDownload
56XADRP-32VDownloadDownloadDownload
57XADRP-34VDownloadDownloadDownload
58XADRP-36VDownloadDownloadDownload
59XADRP-40VDownloadDownloadDownload
