ZM connector

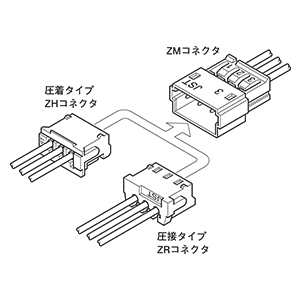

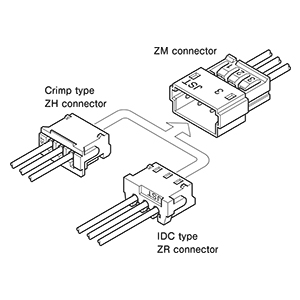

This 1.5 mm pitch wire-to-wire connector is a compact, space-saving interconnect that mates with both crimp and IDC sockets. The four-sided box housing structure is resistant to mechanical stress and misalignment which can cause irregular external forces during the insertion and withdrawal process.
Product Profile
SeriesZM connector
CategoryWire-to-Wire Connectors
Wiring
type
Crimp style
Panel
mounting
Free-hanging
Array
(Insertion part)
Single-row
LockFriction lock
StandardCSA, UL
Specification
Pitch1.5mm
Circuit2, 3, 9, 13
Current
rating
0.7 A AC/DC (AWG #28)
Voltage
rating
50 V AC/DC
Temperature
range
-25℃ to +85℃
Insulation
resistance
500MΩ min.
Withstanding
voltage
There shall be no breakdown or flashover while applying 500 VAC for one minute.
Conductor
size
AWG #30,#28
0.05mm2 to 0.08mm2
Insulation O.D.φ0.7mm to φ0.9mm
RemarksApplicable connectors: ZH, ZR connector
Catalog Catalog Manual Manual
Shopping Site ZM connector ZM connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
102ZR-3H-PDownloadDownloadDownloadDownload
202ZR-8M-PDownloadDownloadDownloadDownload
303ZR-3H-PDownloadDownloadDownloadDownload
403ZR-8M-PDownloadDownloadDownloadDownload
509ZR-3H-PDownloadDownloadDownloadDownload
609ZR-8M-PDownloadDownloadDownloadDownload
713ZR-3H-PDownloadDownloadDownloadDownload
813ZR-8M-PDownloadDownloadDownloadDownload
9SMM-003T-P0.5Download
10SZH-003T-P0.5DownloadDownloadDownloadDownload
11ZHR-13DownloadDownloadDownloadDownload
12ZHR-2DownloadDownloadDownloadDownload
13ZHR-3DownloadDownloadDownloadDownload
14ZHR-9DownloadDownloadDownloadDownload
15ZMR-02DownloadDownloadDownloadDownload
16ZMR-03DownloadDownloadDownloadDownload
17ZMR-09DownloadDownloadDownloadDownload
18ZMR-13DownloadDownloadDownloadDownload
