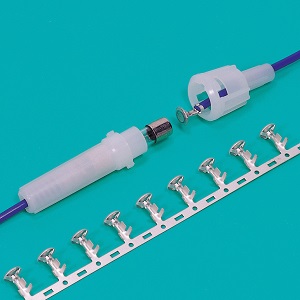

This is a connection component to be incorporated into lamp sockets and fuse holders, and has excellent reliability and workability compared to conventional soldering types, and is widely used in automobiles.
Product Profile
| Series | Button contact |
| Category | Chain Terminals/Splices |
Wiring
type | Crimp style |
| Shape | Others |
| Application | Glass tube fuse holder, Lamp socket |
Specification
Conductor
size | AWG # 20 , # 18
0.5 mm2 to 0.85 mm2 |
| Insulation O.D. | φ 2.1 mm to φ 3 mm |
[Notes]
"-" in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells:
Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
