HOME > Product Profile

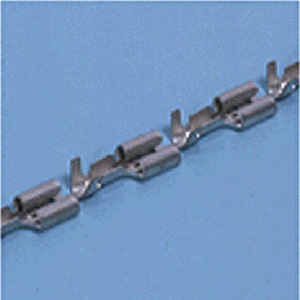

Tab-on terminal #250 Tab-on type
Product Profile
SeriesTab-on terminal #250 Tab-on type
CategoryChain Terminals/Splices
Wiring
type		Crimp style
ShapeTab-on/in
Tab
size		For #250 tab (Female)
StandardCSA, UL
Specification
Conductor
size		AWG #22,#20,#18,#16,#14,#12
0.3mm2 to 3.5mm2
Insulation O.D.φ2.3mm to φ5mm
Catalog Catalog
Tab-on terminal #250 Tab-on type

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1STO-21T-250N
-
-
-
Download
2STO-61T-250NDownloadDownloadDownloadDownload
3STO-62T-250N
-
-
-
Download
4STO-81T-250NDownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
