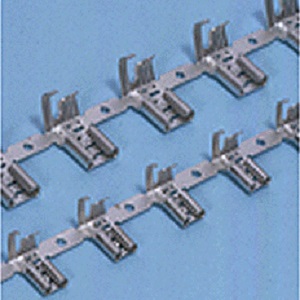

Tab-on terminal #187/#250 Tab-on flag type
Product Profile
SeriesTab-on terminal #187/#250 Tab-on flag type
CategoryChain Terminals/Splices
Wiring
type		Crimp style
ShapeTab-on/in, Tab-on/in (Flag)
Tab
size		For #187 tab (Female), For #250 tab (Female)
StandardCSA, UL
Specification
Conductor
size		AWG # 20 , # 18 , # 16 , # 14
0.5 mm2 to 2 mm2
Insulation O.D.φ 2.6 mm to φ 3.8 mm
Catalog Catalog
Tab-on terminal #187/#250 Tab-on flag type

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SFO-41T-187NDownloadDownloadDownloadDownload
2SFO-41T-187N-8
-
-
-
Download
3SFO-61T-250ADownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
