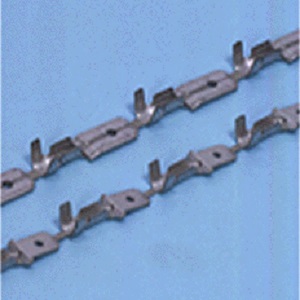

Tab-on terminal #187/#250 Tab-on tab type
Product Profile
SeriesTab-on terminal #187/#250 Tab-on tab type
CategoryChain Terminals/Splices
Wiring
type		Crimp style
ShapeTab-on/in
Tab
size		#187 tab (Male), #250 tab (Male)
StandardUL
Specification
Conductor
size		AWG # 22 , # 20 , # 18 , # 16 , # 14
0.3 mm2 to 2 mm2
Insulation O.D.φ 2.3 mm to φ 3.8 mm
Catalog Catalog Manual Manual
Tab-on terminal #187/#250 Tab-on tab type

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SOM-21-187
-
-
-
Download
2SOM-21T-187DownloadDownloadDownloadDownload
3SOM-51-250
-
-
-
Download
4SOM-51T-250
-
-
-
Download
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
