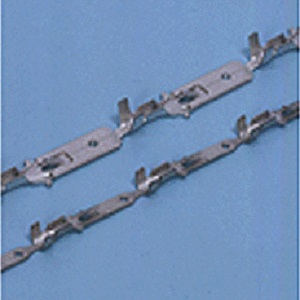

| Series | Tab-in terminal #110/#250 Tab-in tab type |
| Category | Chain Terminals/Splices |
| Wiring type | Crimp style |
| Shape | Tab-on/in |
| Tab size | #110 tab (Male), #250 tab (Male) |
| Standard | UL |
| Conductor size | AWG # 22 , # 20 , # 18 , # 16 , # 14 , # 12 0.3 mm2 to 3.5 mm2 |
| Insulation O.D. | φ 2.1 mm to φ 4 mm |
| Product | IGES | STEP | 3D-PDF | 2D-PDF | |
| 1 | SIM-01-110A | - | - | - | Download |
| 2 | SIM-01T-110A | Download | Download | Download | Download |
| 3 | SIM-41-110B | - | - | - | Download |
| 4 | SIM-41T-110B | - | - | - | Download |
| 5 | SIM-51-250N | - | - | - | Download |
| 6 | SIM-51T-250N | - | - | - | Download |
Catalog
