HOME > Product Profile

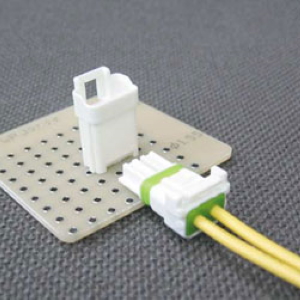

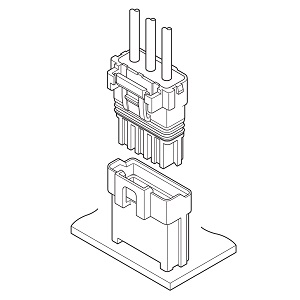

WPJ connector (Wire-to-Board)
pdf Catalog pdf Manual 2D3d 3D Data
ProductIGESSTEP3D-PDF
102R-WPJV-1-SMMDownloadDownloadDownload
203R-WPJV-1-SMMDownloadDownloadDownload
3B02B-WPJSS-1DownloadDownloadDownload
4B03B-WPJSS-1DownloadDownloadDownload
5WPJR-02V-1-SDownloadDownloadDownload
6WPJR-03V-1-SDownloadDownloadDownload
Shopping Site
Product Profile
SeriesWPJ connector (Wire-to-Board)
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeCrimp style
Disconnectable type
FeatureWaterproof
Specification
Pitch5.0mm
Current rating7A (AWG#18)
Voltage rating300V
Product description
Compact, Water Resist and Durable.
This connector for electrical connection can be used on both waterproof and non-waterproof conditions, depending on the usage.
Just by placing a rubber part will change it into a water resistant connector.
Both conditions are using the same header.

WPJ connector (Wire-to-Board)
