DA connector

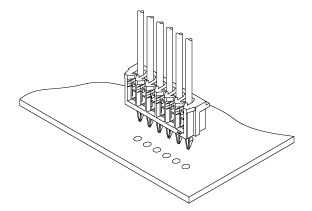

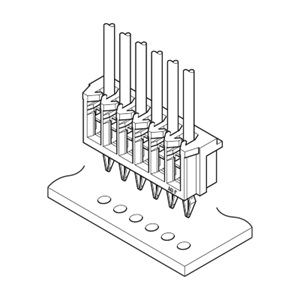

This is a board-in, top-feed, wire-to-board connector in 2.0 mm pitch for direct PCB mounting, allowing wires to exit perpendicular to the board.
Product Profile
SeriesDA connector
CategoryInsulation Displacement Connectors (Wire-to-Board Board-in type)
Array
(Insertion part)		Single-row
StandardCSA, UL
Specification
Pitch2 mm
Circuit2, 3, 4, 5, 6, 7, 8, 9, 10
Current
rating		1 A AC/DC (AWG #26)
Voltage
rating		100 V AC/DC
Temperature
range		-25 ℃ to +85 ℃
Insulation
resistance		1,000 MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 800 VAC for one minute.
Conductor
size		AWG # 28 , # 26
Insulation O.D.φ 0.9 mm to φ 1 mm
RemarksApplicable wire: UL1061, UL1571
Catalog Catalog Manual Manual
DA connector DA connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
102DA-8MDownloadDownloadDownloadDownload
203DA-8MDownloadDownloadDownloadDownload
304DA-8MDownloadDownloadDownloadDownload
405DA-8MDownloadDownloadDownloadDownload
506DA-8MDownloadDownloadDownloadDownload
607DA-8MDownloadDownloadDownloadDownload
708DA-8MDownloadDownloadDownloadDownload
809DA-8MDownloadDownloadDownloadDownload
910DA-8MDownloadDownloadDownloadDownload
1002DA-6SDownloadDownloadDownloadDownload
1103DA-6SDownloadDownloadDownloadDownload
1204DA-6SDownloadDownloadDownloadDownload
1305DA-6SDownloadDownloadDownloadDownload
1406DA-6SDownloadDownloadDownloadDownload
1507DA-6SDownloadDownloadDownloadDownload
1608DA-6SDownloadDownloadDownloadDownload
1709DA-6SDownloadDownloadDownloadDownload
1810DA-6SDownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
