DD/DS connector

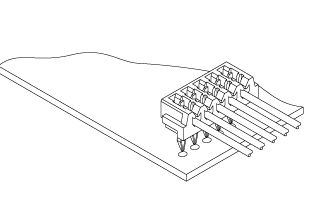

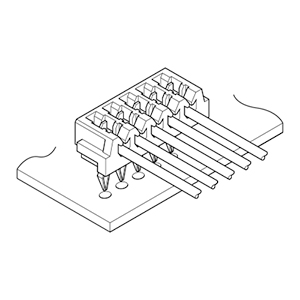

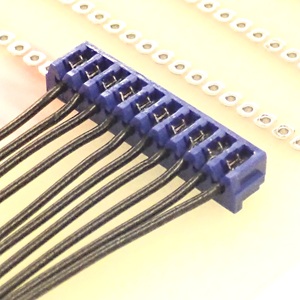

This right angle board-in type IDC connector allows wires to run parallel to the PCB. With an overall mounted height of only 3.5 mm, a low profile design can be accomplished. This is especially suitable for high density and low profile wiring layouts in compact electronic equipment.
Product Profile
SeriesDD/DS connector
CategoryInsulation Displacement Connectors (Wire-to-Board Board-in type)
Array
(Insertion part)		Single-row
StandardUL
OthersSide-Feed
Specification
Pitch2mm
Circuit2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16
Current
rating		0.7 A AC/DC
Voltage
rating		100 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 800 VAC for one minute.
Conductor
size		AWG #28
Insulation O.D.φ0.9mm
RemarksApplicable wire: UL1061, UL1571
Catalog Catalog Manual Manual
Shopping Site DD/DS connector DD/DS connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
102DS-8EDownloadDownloadDownloadDownload
203DS-8EDownloadDownloadDownloadDownload
304DS-8EDownloadDownloadDownloadDownload
405DS-8EDownloadDownloadDownloadDownload
506DS-8EDownloadDownloadDownloadDownload
607DS-8EDownloadDownloadDownloadDownload
708DS-8EDownloadDownloadDownloadDownload
809DS-8EDownloadDownloadDownloadDownload
910DS-8EDownloadDownloadDownloadDownload
1011DS-8EDownloadDownloadDownloadDownload
1112DS-8EDownloadDownloadDownloadDownload
1213DS-8EDownloadDownloadDownloadDownload
1314DS-8EDownloadDownloadDownloadDownload
1415DS-8EDownloadDownloadDownloadDownload
1516DS-8EDownloadDownloadDownloadDownload
