DM-144P connector JEDEC-MO-190

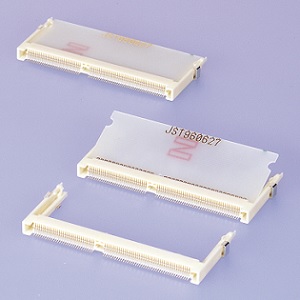

This is sockets for the S.O.DIMM of 144-circuits based on the JEDEC MO-190 standard, and its side type socket is low profile with 5.2 mm height.
Product Profile
SeriesDM-144P connector JEDEC-MO-190
CategoryCard Edge Connectors
Sub
category		Card-to-Board
PC board
mounting		SMT
Mating

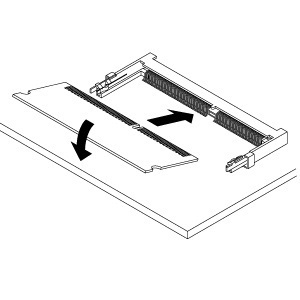

direction		Side entry, Top entry
StandardJEDEC, S.O.DIMM, UL
Specification
Pitch0.8mm
Circuit144
Current
rating		0.5 A AC/DC
Voltage
rating		250 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		250MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 250 VAC for one minute.
