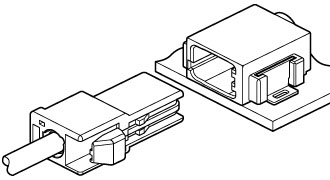

| Series | EA1 connector |
| Category | Automotive Connectors |
| Sub category | Wire-to-Board, Coaxial |
| PC board mounting | SMT |
| Mating direction | Side entry |
| Lock | Secure lock (Inner) |
| Retainer | Retainer |
| Transmission Electromagnetic | High frequency |
| Current rating | 1 A AC/DC |
| Voltage rating | 250 V |
| Temperature range | -40℃ to +85℃ |
| Insulation resistance | 1,000MΩ min. |
| Withstanding voltage | There shall be no breakdown or flashover while applying 300 VAC for one minute. |
| Remarks | Applicable cable: SEI's 1.5DS-GXC-SP |
| Product | IGES | STEP | 3D-PDF | 2D-PDF | |
| 1 | EA1-PHN-4S | - | - | - | Download |
| 2 | EA1-PHG-1K-A | - | - | - | Download |
| 3 | EA1-PRT-3H | - | - | - | Download |
| 4 | EA1-SCS342 | - | - | - | Download |
| 5 | EA1-SLP290 | - | - | - | Download |
| 6 | EA1-FLP290A | - | - | - | Download |
| 7 | EA1-SSP391 | - | - | - | Download |
| 8 | EA1-1RAS-029100-K1-TF | Download |
