J.S.T. Mfg. Co., Ltd.

DR connector

Manual

	Product	IGES	STEP	3D-PDF	2D-PDF
1	02DR-N-E6S-P	Download	Download	Download	Download
2	02DR-N-E8E-P	Download	Download	Download	Download
3	03DR-N-E6S-P	Download	Download	Download	Download
4	03DR-N-E8E-P	Download	Download	Download	Download
5	04DR-N-E6S-P	Download	Download	Download	Download
6	04DR-N-E8E-P	Download	Download	Download	Download
7	05DR-N-E6S-P	Download	Download	Download	Download
8	05DR-N-E8E-P	Download	Download	Download	Download
9	06DR-N-E6S-P	Download	Download	Download	Download
10	06DR-N-E8E-P	Download	Download	Download	Download
11	07DR-N-E6S-P	Download	Download	Download	Download
12	08DR-N-E6S-P	Download	Download	Download	Download
13	09DR-N-E6S-P	Download	Download	Download	Download
14	10DR-N-E6S-P	Download	Download	Download	Download
15	10DR-N-E8E-P	Download	Download	Download	Download
16	B02-DR	Download	Download	Download	Download
17	B03-DR	Download	Download	Download	Download
18	B04-DR	Download	Download	Download	Download
19	B05-DR	Download	Download	Download	Download
20	B06-DR	Download	Download	Download	Download
21	B07-DR	Download	Download	Download	Download
22	B08-DR	Download	Download	Download	Download
23	B09-DR	Download	Download	Download	Download
24	B10-DR	Download	Download	Download	Download
25	S02B-DR	Download	Download	Download	Download
26	S03B-DR	Download	Download	Download	Download
27	S04B-DR	Download	Download	Download	Download
28	S05B-DR	Download	Download	Download	Download
29	S06B-DR	Download	Download	Download	Download
30	S07B-DR	Download	Download	Download	Download
31	S08B-DR	Download	Download	Download	Download
32	S09B-DR	Download	Download	Download	Download
33	S10B-DR	Download	Download	Download	Download

Shopping Site

Product Profile

Series	DR connector
Category	Insulation Displacement Connectors (Wire-to-Board type)
Type	IDC style, Space saving mountable Disconnectable type

Specification

Pitch	2.0mm
Current rating	1.0A (AWG#26)
Voltage rating	100V
PC board mounting direction	Top entry, Side entry

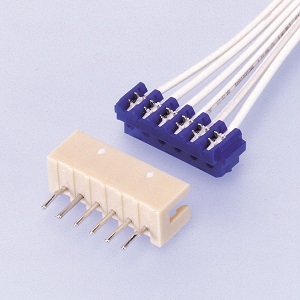

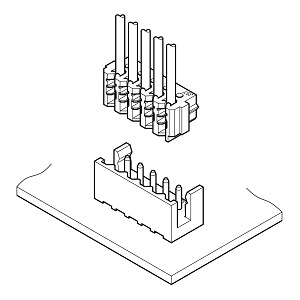

Product description

With a mounting height of 5.0 mm and a thickness of 4.8 mm (top entry type), it is the industry-leading space-saving 2.0 mm pitch mating type wire-to-board connector.
