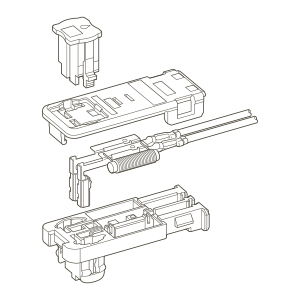

SQW connector
This connector for air-bag has intelligent CPA, which allows locking the connector, incomplete mating detection and release of short-circuit at the same time and achieves high resistance to noise at the specific frequency range with a built-in coil.
Product Profile
SeriesSQW connector
CategoryAutomotive Connectors
Sub
category
Squib
Mating
assist
CPA, Incomplete mating prevention
Transmission
Electromagnetic
Noise measure
ApplicationAir bag
Specification
Circuit2
Temperature
range
-30℃ to +80℃
Insulation
resistance
100MΩ min.
Conductor
size
0.5mm2
Insulation O.D.φ1.6mm
Catalog Catalog
Shopping Site SQW connector SQW connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
102SQW-A1_REFER_ASSYDownloadDownloadDownload
2SQWC-02H-1A-YDownload
3SQWL-02H-1-LP BDownload
4SQWL-02H-1-M ADownload
5SQWR-02H-1A-LPDownload
6SQWR-02H-1C-DDownload
7SSQW-A03GI-P-PDownload
