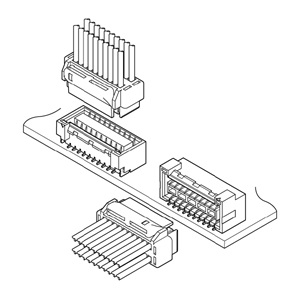

GHD connector (Gold-plated product)
pdf Catalog 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1BM10B-GHDS-G-TFDownloadDownloadDownloadDownload
2BM12B-GHDS-G-TFDownloadDownloadDownloadDownload
3BM14B-GHDS-G-TFDownloadDownloadDownloadDownload
4BM16B-GHDS-G-TFDownloadDownloadDownloadDownload
5BM18B-GHDS-G-TFDownloadDownloadDownloadDownload
6BM20B-GHDS-G-TFDownloadDownloadDownloadDownload
7BM22B-GHDS-G-TFDownloadDownloadDownloadDownload
8BM24B-GHDS-G-TFDownloadDownloadDownloadDownload
9BM26B-GHDS-G-TFDownloadDownloadDownloadDownload
10BM28B-GHDS-G-TFDownloadDownloadDownloadDownload
11BM30B-GHDS-G-TFDownloadDownloadDownloadDownload
12BM32B-GHDS-G-TFDownloadDownloadDownloadDownload
13BM36B-GHDS-G-TFDownloadDownloadDownloadDownload
14BM38B-GHDS-G-TFDownloadDownloadDownloadDownload
15BM40B-GHDS-G-TFDownloadDownloadDownloadDownload
16GHDR-10V-S-1 (F)DownloadDownloadDownloadDownload
17GHDR-12V-S-1 (F)DownloadDownloadDownloadDownload
18GHDR-14V-S-1 (F)DownloadDownloadDownloadDownload
19GHDR-16V-S-1 (F)DownloadDownloadDownloadDownload
20GHDR-18V-S-1 (F)DownloadDownloadDownloadDownload
21GHDR-20V-S-1 (F)DownloadDownloadDownloadDownload
22GHDR-22V-S-1 (F)DownloadDownloadDownloadDownload
23GHDR-24V-S-1 (F)DownloadDownloadDownloadDownload
24GHDR-26V-S-1 (F)DownloadDownloadDownloadDownload
25GHDR-28V-S-1 (F)DownloadDownloadDownloadDownload
26GHDR-30V-S-1 (F)DownloadDownloadDownloadDownload
27GHDR-32V-S-1 (F)DownloadDownloadDownloadDownload
28GHDR-36V-S-1 (F)DownloadDownloadDownloadDownload
29GHDR-38V-S-1 (F)DownloadDownloadDownloadDownload
30GHDR-40V-S-1 (F)DownloadDownloadDownloadDownload
31SGHD-002GA-P0.2DownloadDownloadDownloadDownload
32SGHD-003GA-P0.2Download
33SM10B-GHDS-A-GAN-TFDownloadDownloadDownloadDownload
34SM12B-GHDS-A-GAN-TFDownloadDownloadDownloadDownload
35SM12B-GHDS-GAN-TFDownload
36SM14B-GHDS-A-GAN-TFDownloadDownloadDownloadDownload
37SM16B-GHDS-A-GAN-TFDownloadDownloadDownloadDownload
38SM18B-GHDS-A-GAN-TFDownloadDownloadDownloadDownload
39SM20B-GHDS-A-GAN-TFDownloadDownloadDownloadDownload
40SM20B-GHDS-GAN-TFDownloadDownloadDownloadDownload
41SM22B-GHDS-A-GAN-TFDownloadDownloadDownloadDownload
42SM22B-GHDS-GAN-TFDownloadDownloadDownloadDownload
43SM24B-GHDS-A-GAN-TFDownloadDownloadDownloadDownload
44SM26B-GHDS-A-GAN-TFDownloadDownloadDownloadDownload
45SM28B-GHDS-A-GAN-TFDownloadDownloadDownloadDownload
46SM30B-GHDS-A-GAN-TFDownloadDownloadDownloadDownload
47SM30B-GHDS-GAN-TFDownloadDownloadDownloadDownload
48SM36B-GHDS-A-GAN-TFDownloadDownloadDownloadDownload
49SM38B-GHDS-A-GAN-TFDownloadDownloadDownloadDownload
50SM40B-GHDS-A-GAN-TFDownloadDownloadDownloadDownload
Shopping Site
Product Profile
SeriesGHD connector (Gold-plated product)
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeCrimp style, Double-row, With secure locking device
Disconnectable type
FeatureWith secure locking device
Specification
Pitch1.25mm
Current rating1.0A (AWG#26)
Voltage rating50V
PC board mounting directionTop entry, Side entry
Product description
To meet the requirement of the high density mounting on PC board of flat panel TV, AV equipments etc., this connector is designed to the double-row type of 1.25mm pitch. Its operability is very well, in spite of the small size.

GHD connector (Gold-plated product)
