MUF connector

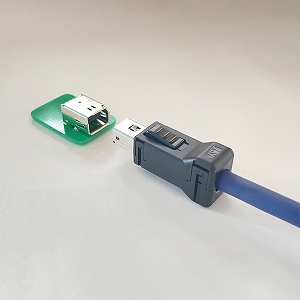

This connector is the shielded interface connector with locking mechanism.
Product Profile
SeriesMUF connector
CategoryInterface Connection Connectors
PC board
mounting		Through-hole, SMT
Mating
direction		Side entry
Mating
assist		Keying
Transmission
Electromagnetic		Shield
StandardUL
Specification
Pitch0.8 mm
Circuit10
Current
rating		1 A AC/DC
Voltage
rating		30 V AC/DC
Temperature
range		-55 ℃ to +85 ℃
Conductor
size		AWG # 28 , # 26 , # 24
0.08 mm2 to 0.21 mm2
Catalog Catalog
MUF connector MUF connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1MUF-PK10K-XDownloadDownloadDownloadDownload
2MUF-RS10DK-GKXRDownloadDownloadDownloadDownload
3MUF-RS10SK-GKX-TBDownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
