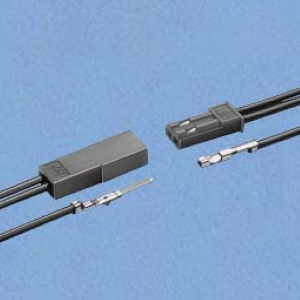

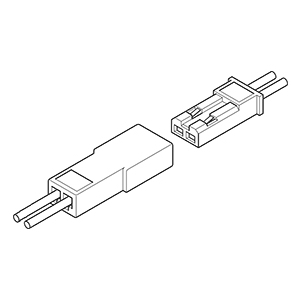

RCY connector
Space-saving and low-profile 2.5 mm pitch wire-to-wire connector.
The free spring in the socket contact ensures excellent insertion/withdrawal operation and stable contact performance.
Product Profile
SeriesRCY connector
CategoryWire-to-Wire Connectors
Wiring
type		Crimp style
Panel
mounting		Free-hanging
Array
(Insertion part)		Single-row
LockFriction lock
StandardUL
Specification
Pitch2.5mm
Circuit2
Current
rating		3 A AC/DC (AWG #22)
0.5 A AC/DC (AWG #28)
Voltage
rating		250 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		500MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,500 VAC for one minute.
Conductor
size		AWG #28,#26,#24,#22
0.08mm2 to 0.33mm2
Insulation O.D.φ1.2mm to φ1.8mm
Catalog Catalog Manual Manual
Shopping Site RCY connector RCY connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SYF-001T-P0.6DownloadDownloadDownloadDownload
2SYM-001T-P0.6DownloadDownloadDownloadDownload
3SYP-02T-1DownloadDownloadDownloadDownload
4SYR-02TDownloadDownloadDownloadDownload
