XNI connector
pdf Catalog 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1B02B-XNISK-A-1DownloadDownloadDownloadDownload
2B03B-XNISK-A-1DownloadDownloadDownloadDownload
3B04B-XNISK-A-1DownloadDownloadDownloadDownload
4B05B-XNISK-A-1DownloadDownloadDownloadDownload
5B06B-XNISK-A-1DownloadDownloadDownloadDownload
6B07B-XNISK-A-1Download
7B08B-XNISK-A-1Download
8B09B-XNISK-A-1Download
9B10B-XNISK-A-1Download
10B11B-XNISK-A-1Download
11B15B-XNISK-A-1Download
12SXNI-001T-P0.6DownloadDownloadDownloadDownload
13SXNI-003T-P0.6Download
14XNIRP-02V-A-SDownloadDownloadDownloadDownload
15XNIRP-03V-A-SDownloadDownloadDownloadDownload
16XNIRP-04V-A-SDownloadDownloadDownloadDownload
17XNIRP-05V-A-SDownloadDownloadDownloadDownload
18XNIRP-06V-A-SDownloadDownloadDownloadDownload
19XNIRP-07V-A-SDownload
20XNIRP-08V-A-SDownload
21XNIRP-09V-A-SDownload
22XNIRP-10V-A-SDownload
23XNIRP-11V-A-SDownload
24XNIRP-15V-A-SDownload
Shopping Site
Product Profile
SeriesXNI connector
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeCrimp style, With secure locking device
Inertial lock structure
FeatureWith secure locking device
With an inertia lock mechanism
Specification
Pitch2.5mm
Current rating3A (AWG#22)
Voltage rating250V
PC board mounting directionTop entry
Product description
This connector is 2.5 mm pitch wire-to-board connector that has a mechanism to prevent an incomplete mating by utilizing the inertial force when mating connector. In all circuits of connector, controlled key for preventing mismatching of mating is added, and two type connectors can be used in the same model.

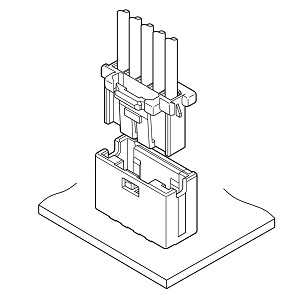

XNI connector
